1/10 SCX10 III Coyote 4X4 RTR Brushed Rock Crawler | The Rc Shop

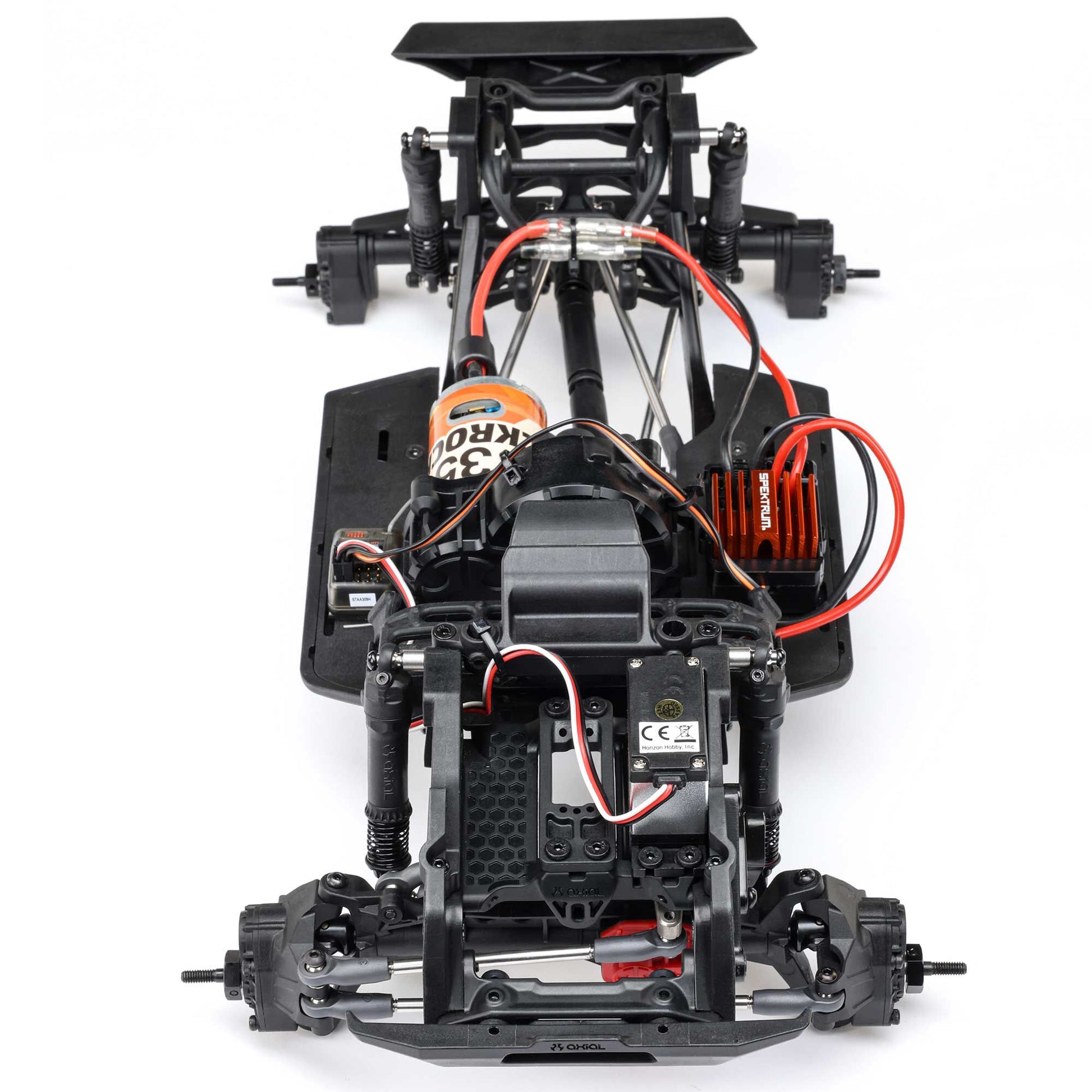

SCX10 III STEEL C-CHANNEL CHASSIS

The Coyote is built on the proven, realistic Axial SCX10 III platform. Its one-piece steel C-channel chassis is easy to work on, reduces frame flexing, and increases the precision of suspension movement.

AR45P PORTAL AXLES

AR45P portal axles increase the SCX10 III Coyote’s ground clearance at the differential for easier off-road handling. The front axle features overdrive gears to improve climbing performance and maneuverability.

LCXU TRANSMISSION

The LCXU 4-wheel drive transmission is durable, simple, and works with standard and portal axles. It has a full set of ball bearings and all-metal internal gears for the strength and durability to conquer trails and competitors.

PRO-LINE COYOTE BODY

Created by Pro-Line, the factory-painted Coyote polycarbonate body offers more than trail- and comp-ready looks. It mounts without any body clips and can be completely removed for easy chassis access. The body is contoured to slip through obstacles and allow ample tire clearance and suspension articulation.

Licensed Maxxis Tires & KMC Grenade Wheels

The Coyote’s officially licensed Maxxis Trepador tires add to the rig’s realistic looks and high-performance crawling capabilities. Dual stage, open cell foam inserts are included, with soft outer foam and firm inner foam to improve grip and sidewall support. KMC Grenade wheels are loaded with detail and their one-piece design is light weight and durable.

COIL-OVER SHOCKS

The competition-style composite smooth body shocks improve tire clearance and provide smooth, predictable handling over any terrain. These pro-inspired shocks combine the right amount of support and droop for a level of performance not typically seen in RTRs.

OPTIMIZED SUSPENSION

The SCX10 III Coyote’s multi-link, solid axle suspension features 6mm stainless steel links and all-metal pivot balls for off-road durability.

INSTALLED POWER SYSTEM

The Coyote’s factory-installed brushed power system features a 35T Axial 540 motor and waterproof Spektrum 40A ESC. A metal geared Spektrum S664 servo is included for strong, dependable steering.

SPEKTRUM SLT2 2.4GHz TRANSMITTER

The included Spektrum SLT2 transmitter is designed to help all drivers succeed on the trails. Its throttle limiting feature can limit the rig’s maximum available speed to 50% or 75% until you’re ready for it all. Four AA batteries are included.

NEW BATTERY MOUNT

A new battery mount on the SCX10 III Coyote allows the battery to be positioned in front of the transmission for improved weight distribution and balance.

THE AXIAL COYOTE SCX10III 1/10 scale 4x4 Crawler
Approximate Assembly Time
No Assembly Required
Ball Bearings
Full ball bearings
Battery
Sold Separately
Body
Factory-painted Pro-Line Coyote body
Charger
Sold Separately
Completion Level
Ready-To-Run
Connector Type
IC3
Drive Type
Forward/Brake/Reverse
Drivetrain
4WD
LiPo Compatibility
2S, 3S
Motor Type
Brushed
Pinion
14T
Power Type
Electric
Product Height
7.75" (197 mm)
Product Length
17.5" (445 mm)
Product Weight
(with 1300mAh battery): 5.25 lb (2.38kg)
Product Width
9.25" (235 mm)
Radio
Included
Receiver
Included
Scale
1/10
Servos
Included
Shock Type
Oil-filled shocks
Spur Gear
25T
Suspension
Multi-link solid axle suspension
Tire Type
Officially licensed Maxxis Trepador tires
Vehicle Size
Standard
Vehicle Type
Rock Crawler
Wheel Hex Size
12mm
Wheelbase
12.3" (312 mm)
