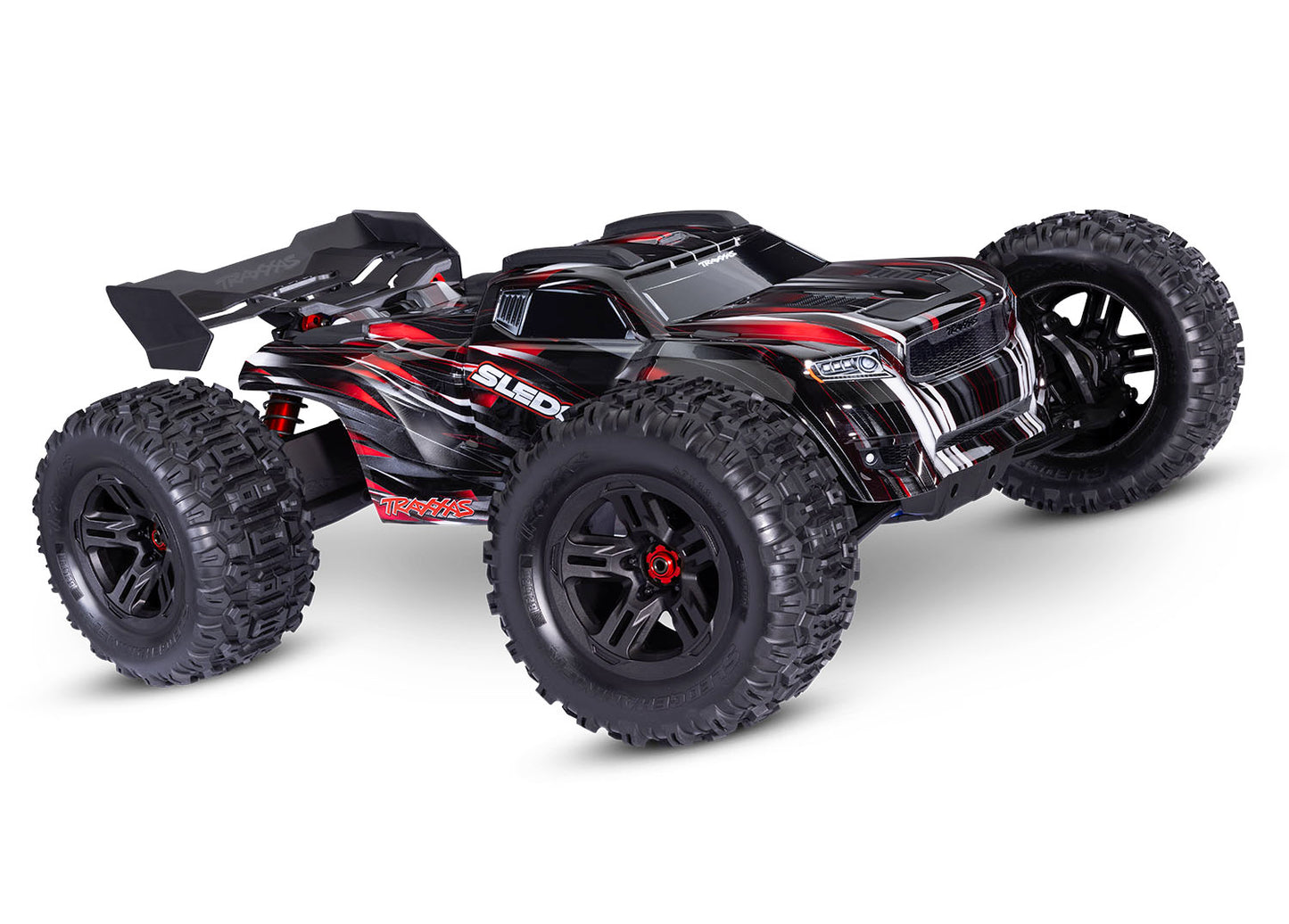

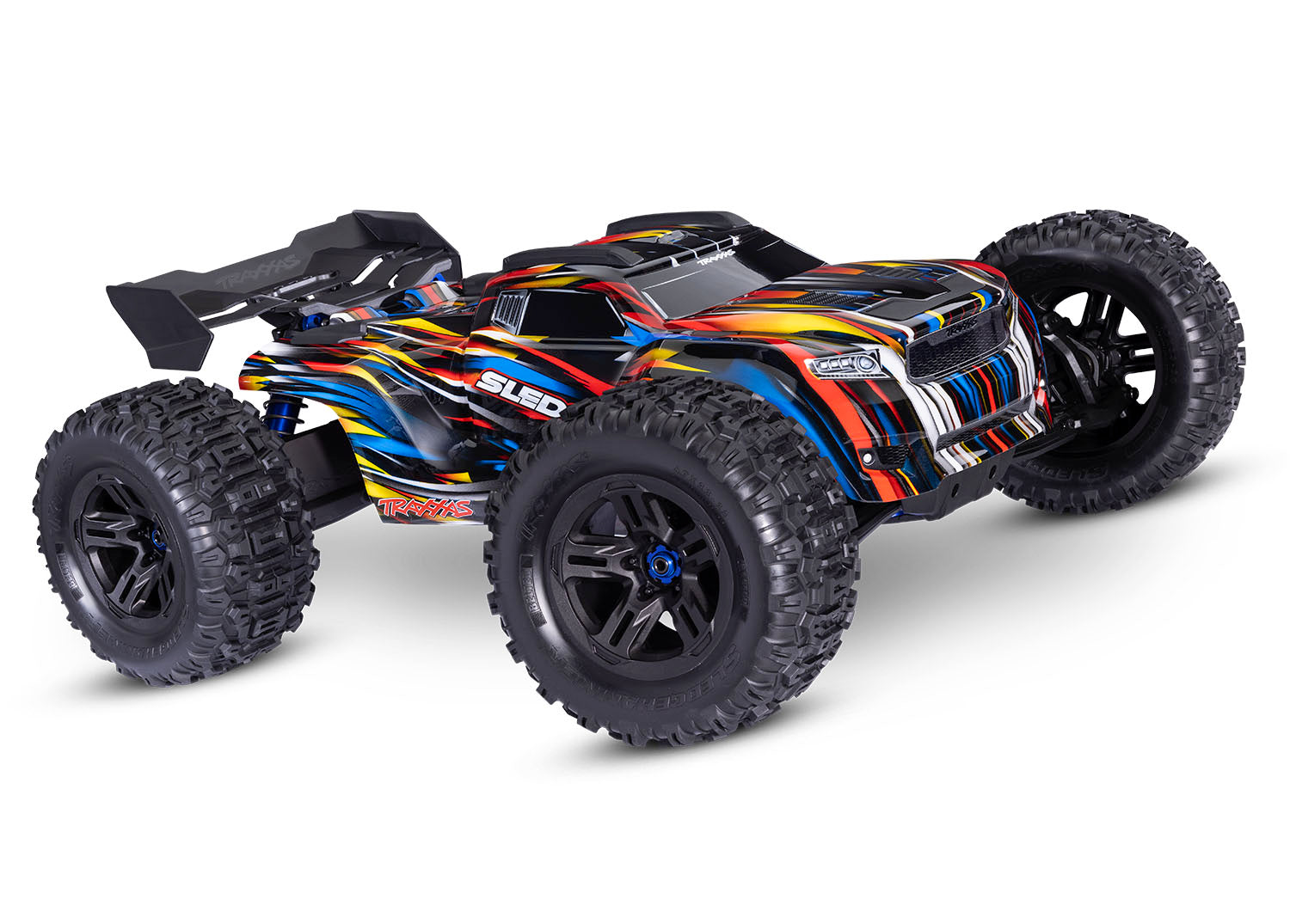

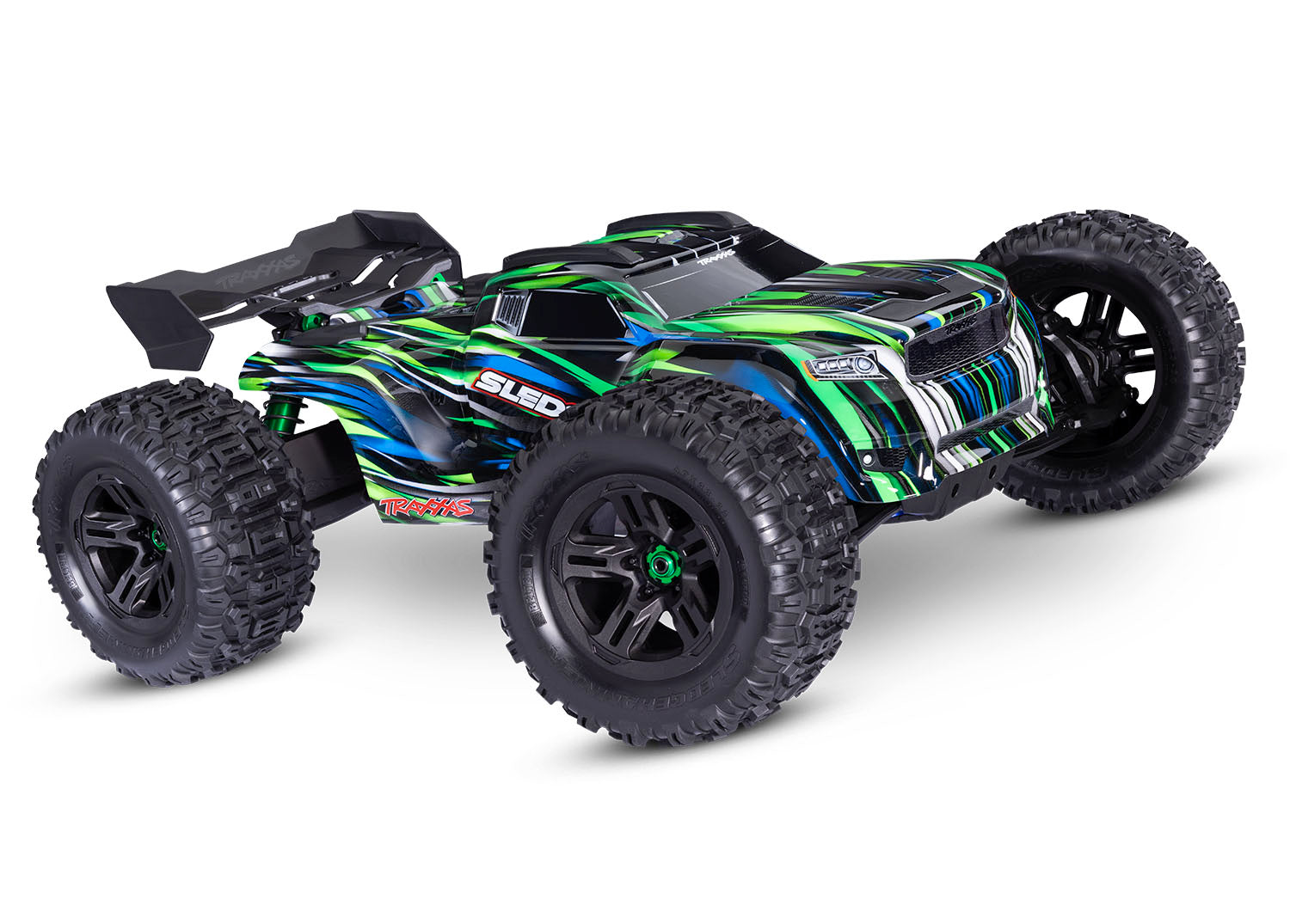

1/8 Sledge Belted Model 95096-4
1/8 Sledge Belted Model 95096-4
MODEL SPECS
Model Name: Sledge Belted
Model Type: Monster Truck
Model Speed: 70+ mph with 6s LiPo battery and optional gearing
Model Skill Level: 4
Scale: 1/8
Weight: 12.74 lbs (5.77 kg)
Length: 23.78 inches (604 mm including wing)
Width: 18.10 inches (459 mm)
Front Track: 18.10 inches (459 mm)
Rear Track: 18.10 inches (459 mm)
Height: 8.43 inches (214 mm)
Wheelbase: 15.10 inches (384 mm)
Center Ground Clearance: 1.95 inches (50 mm)
Drivetrain: Shaft-driven 4WD
Transmission: Single speed
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: 1.0 metric pitch
Servo(s): 2275 digital metal-gear waterproof (347 oz-in)
Radio System: TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver
Battery Compartment Specs: 181 mm X 54 mm X 45 mm
MOTOR SPECS
Motor Name: 4-pole 2000 kV
Motor Type: 2000 kV sensorless brushless
Motor Weight: 14.32 oz (406 g)
Motor Length: 2.97 inches (76 mm)
Motor Diameter: 1.65 inches (42 mm)
Motor Shaft Size: 5 mm
Motor Connector Type: Traxxas 6.5 mm bullet connectors
ESC SPECS
ESC Name: VXL-6s
ESC Type: Brushless
ESC Case Size: 2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm)
ESC Weight: 7.30 oz (207 g)
Motor Connectors: 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
