107154-1 Mini Maxx BL-2s | The RC SHOP AT DRDANS

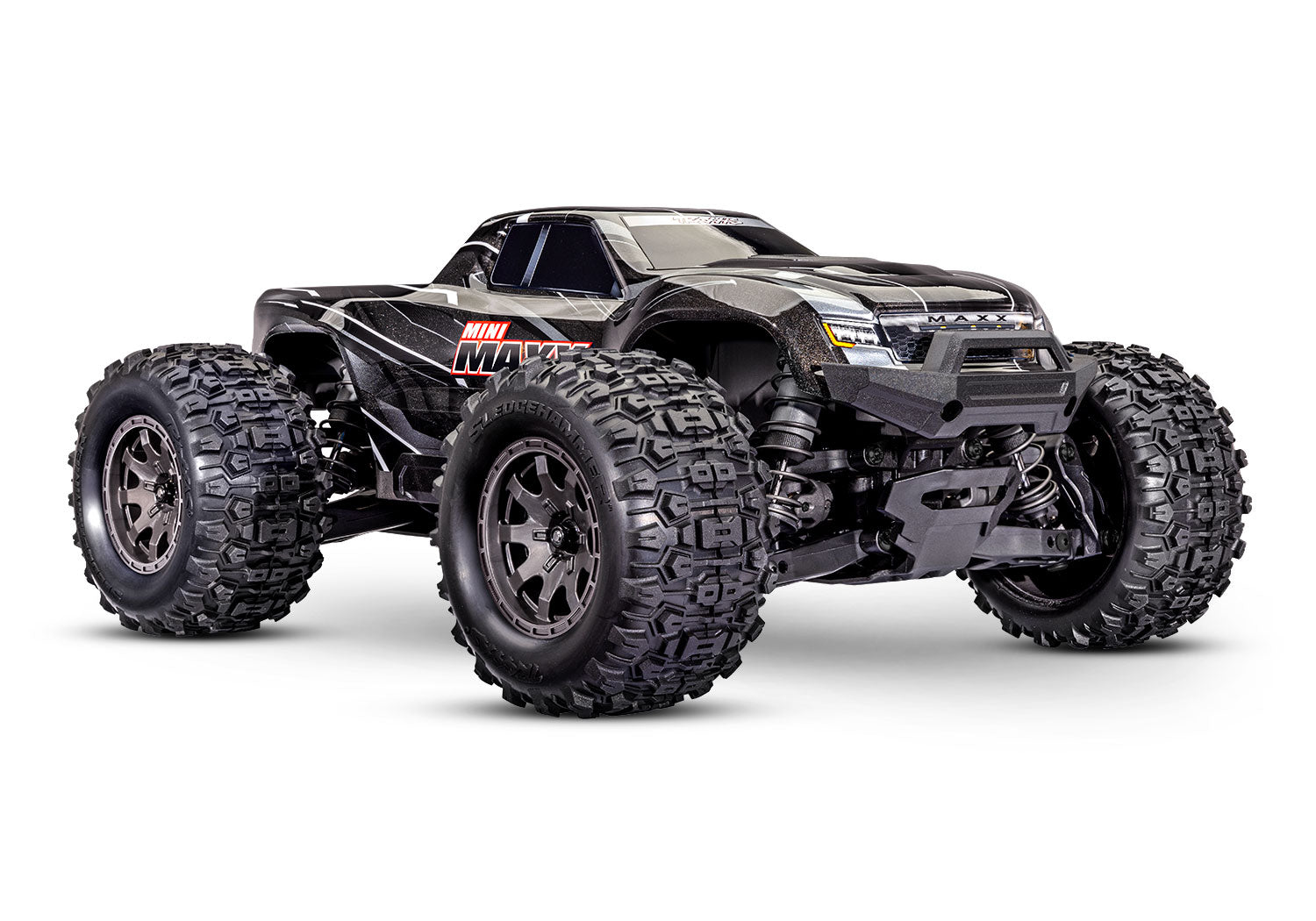

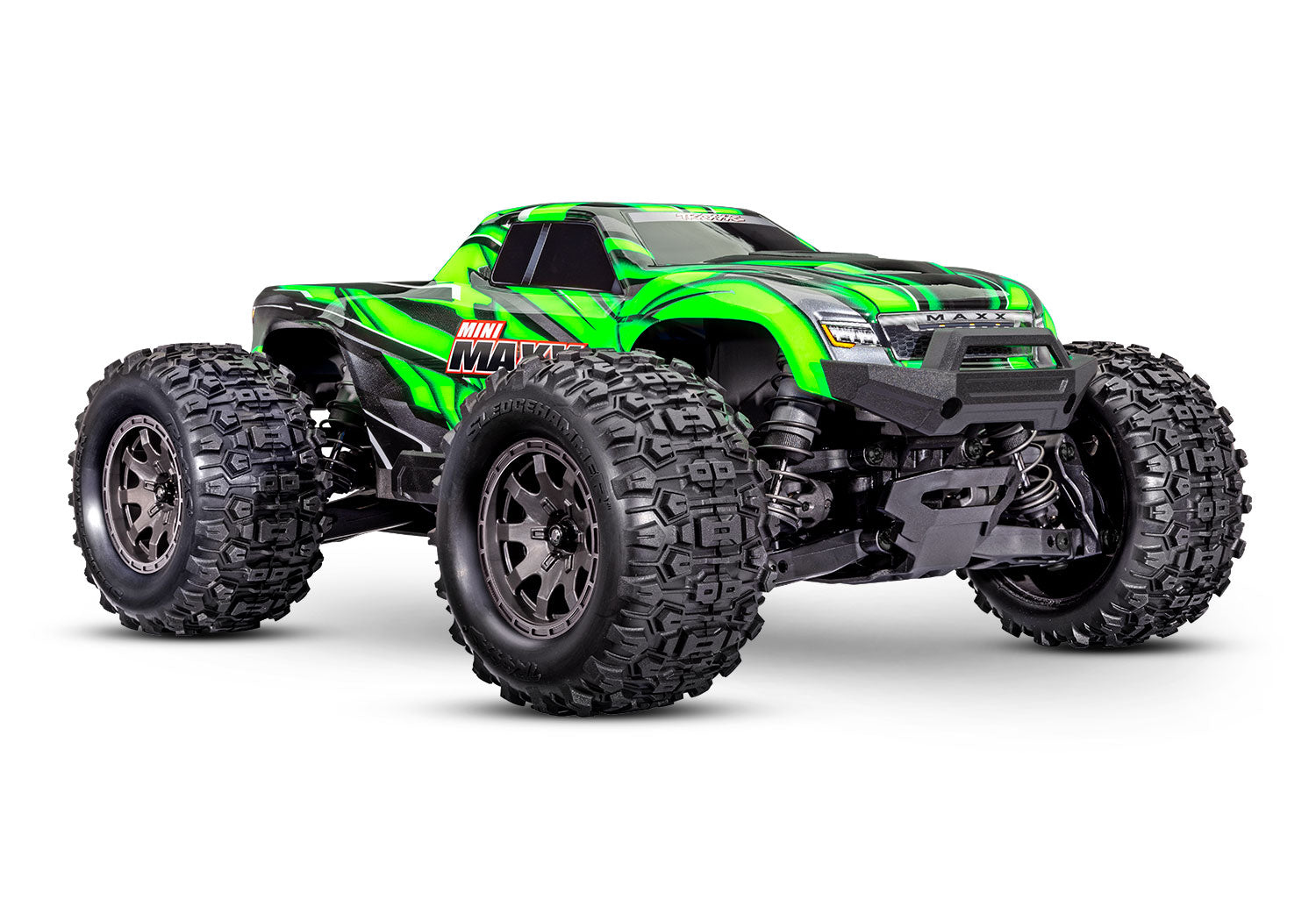

Overbuilt and over-the-top, the all-new Mini Maxx® captures the engineering, unmatched power, and extreme durability that defines Traxxas Maxx® performance. Mini Maxx is the perfect, take-anywhere size, delivering 30+ mph brushless speed and legendary Maxx toughness that slides easily into a backpack.

MODEL 107154-1 Mini Maxx: Maxx-scale monster truck, fully assembled, Ready-To-Race®, with TQ™
2.4 GHz radio system, Bl-2s™ Brushless Power System, and clipless painted body. Includes 2-cell LiPo battery and 2-amp USB-C charger.

THE RC SHOP AT DRDANS

MODEL SPECS

Name:	Mini Maxx®
Type:	Monster Truck
Top Speed:	30+
Skill Level:	1
Scale:	Mini
Length:	13.58 inches (345 mm)
Width:	9.94 inches (253 mm)
Height:	5.39 inches (137 mm)
Weight:	3.62 pounds (1.64 kg)
Front Track:	9.94 inches (253 mm)
Rear Track:	9.94 inches (253 mm)

Wheelbase:	8.66 inches (220 mm)
Ground Clearance:	1.06 inches (27 mm)
Driveline:	Shaft-driven 4WD
Transmission:	Direct drive
Differential Type:	Planetary, steel gear
Overall Drive Ratio:	9.20:1
Gear Pitch:	32
Steering Servo:	2056
Radio System:	TQ 2.4 GHz (2-channel)
Battery Compartment Specs:	113 mm L x 41 mm W x 22 mm H

MOTOR SPECS

Motor Type:	BL-2s 3300 Kv sensorless brushless motor
Weight:	7.51 ounces (213 g)
Length:	3.15 inches (80 mm)
Diameter:	1.42 inches (36 mm)
Shaft Size:	3 mm
Connector Type:	Traxxas Quick Connect Motor Plug

ESC SPECS

Name:	BL-2s Electronic Speed Control
ESC Type:	Brushless
Case Size:	1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
Weight:	3.07 ounces (87 g)
Voltage:	6 volts
Thermal Protection:	Two-stage thermal shutdown
Ports:	Auxiliary fan
Battery Connector:	Traxxas High-Current Connector
