108076-1 Mini XRT VXL-3s | THE RC SHOP AT DRDANS

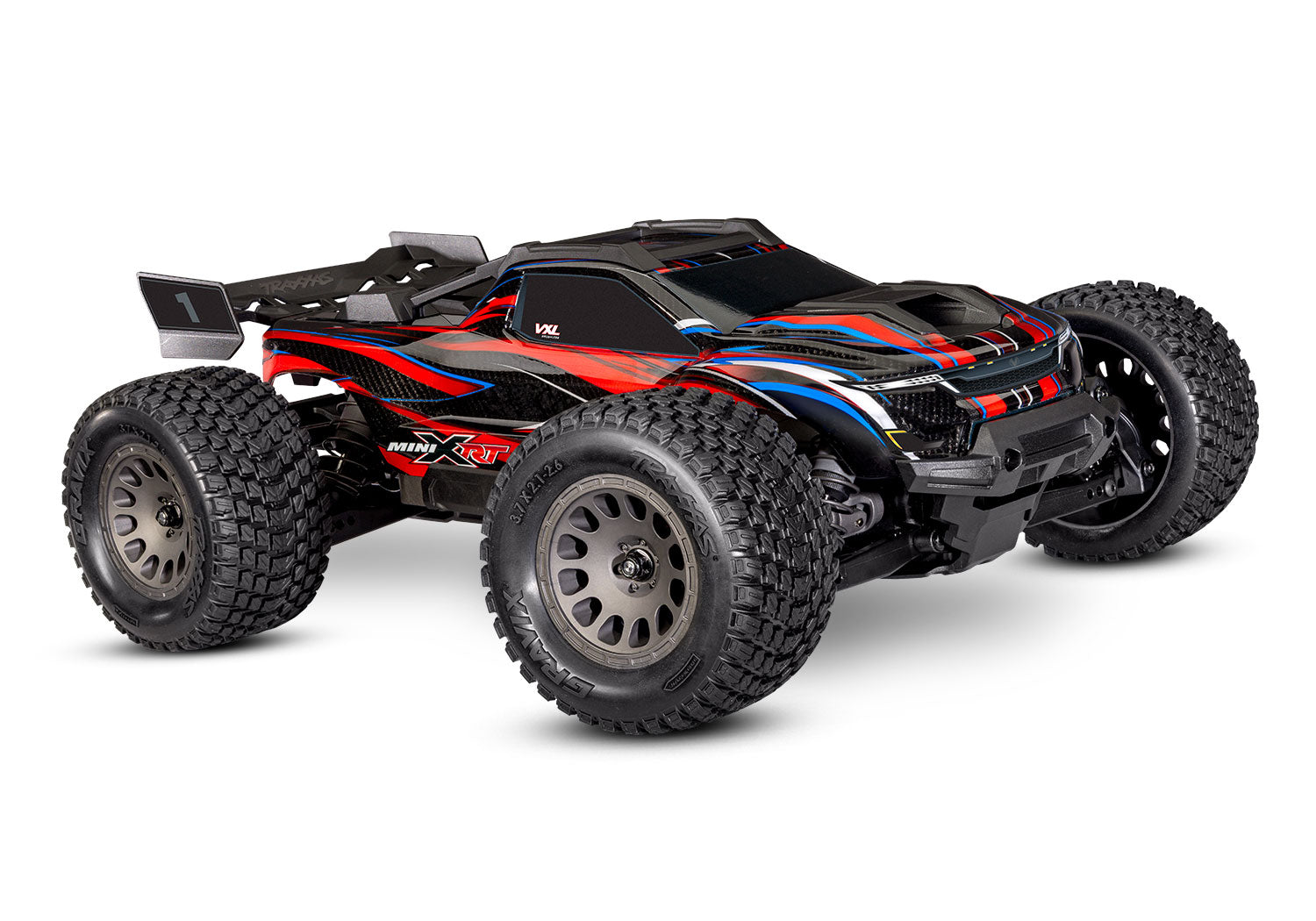

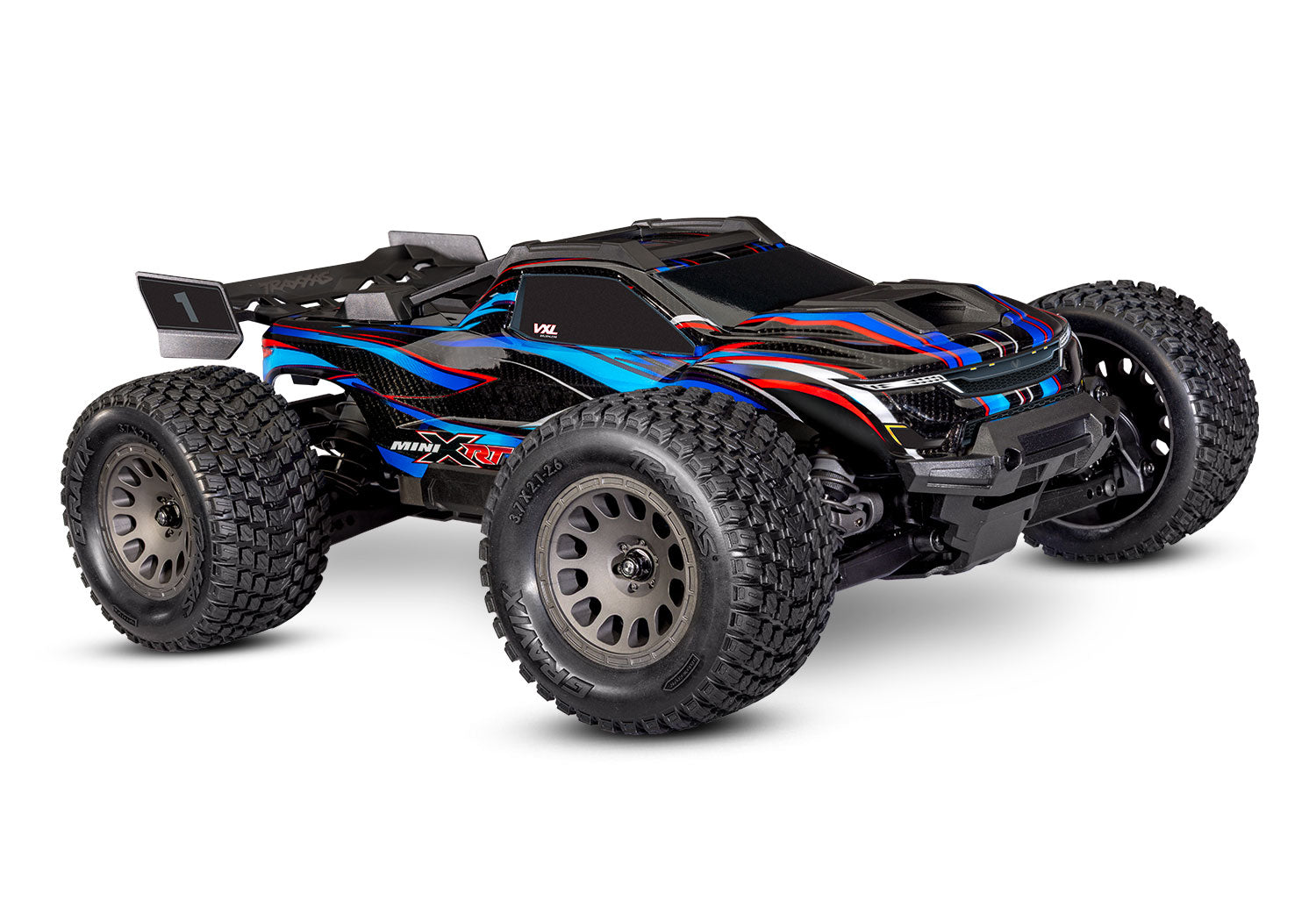

MODEL MODEL 108076-1: Mini XRT^® VXL-3s: brushless monster truck, fully assembled, Ready-To-Race^®, with TQi™ 2.4 GHz radio system, Velineon^® VXL-3s™ brushless power system, and clipless painted body. Includes 2-cell LiPo battery and 2-amp USB-C charger.

What’s In The Box:

• Mini XRT monster truck
• Velineon VXL-3s brushless power system
• 3500 mAh 2-cell LiPo battery
• 2-amp USB-C charger
• TQi 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter

• USB-C Power Source

  Traxxas 45-watt AC adapter 2912 and power cable 2916 recommended

Name:	Mini XRT
Type:	Monster Truck
Top Speed:	55+
Skill Level:	1
Scale:	Mini
Length:	14.8 inches (376 mm)
Width:	11 inches (279 mm)
Height:	5 inches (127 mm)
Weight:	3.99 pounds (1.81 kg)
Track:	11 inches (279 mm)

Wheelbase:	8.66 inches (220 mm)
Ground Clearance:	1.06 inches (27 mm)
Driveline:	Shaft-driven 4WD
Transmission:	Direct drive with center differential
Differential Type (F&R):	Planetary, steel gear
Overall Drive Ratio:	7.36:1
Gear Pitch:	32
Steering Servo:	2075X metal-gear
Radio System:	TQi 2.4 GHz (2-channel) w/ TSM
Battery Compartment Specs:	113 mm L x 41 mm W x 22 mm H

MOTOR SPECS

Name:	Velineon® 3500
Motor Type:	Sensorless brushless
Weight:	9.24 ounces (262 g)
Length:	3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Diameter:	1.41 inches (36 mm)
Shaft Size:	3 mm
Connector Type:	3.5 mm bullet

ESC SPECS

Name:	VXL-3s™ electronic speed control
ESC Type:	Brushless
Case Size:	1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
Weight:	3.17 ounces (90 g)
Motor Connectors:	3.5 mm bullet
Battery Connectors:	Traxxas High-Current Connector
Power Wire:	12 gauge Maxx Cable

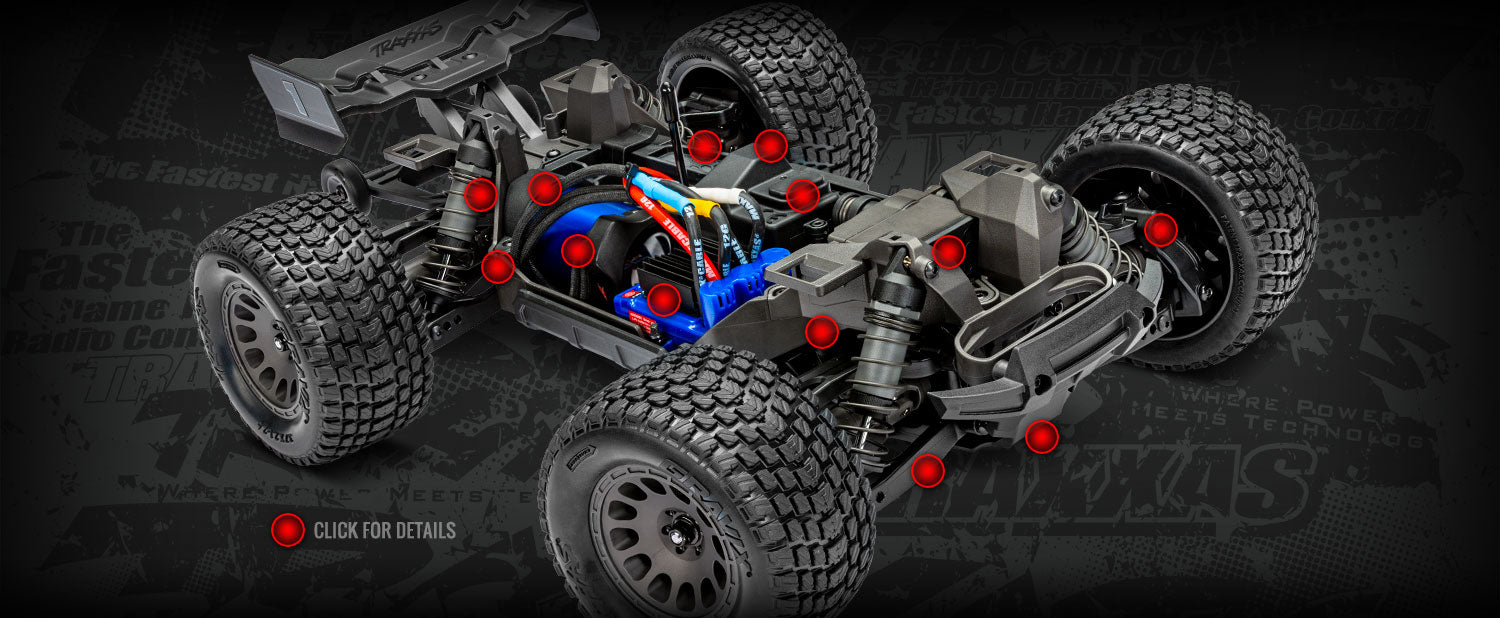

 The Mini XRT VXL-3s delivers serious performance in a compact package. Reach 40+ mph with the included 2-cell LiPo battery, or push beyond 55 mph with an optional 3-cell upgrade. The waterproof VXL-3s electronic speed control features three programmable drive modes—Sport, Race, and Training—plus Traxxas Stability Management for confident handling on any surface. Its Velineon 3500 Kv brushless motor combines low-maintenance efficiency with high-speed performance. The clipless body mounting system enables tool-free installation, while reinforced construction and functional rear wing provide durability and aerodynamic support. Full-time 4WD with sealed differentials and oil-filled shocks handle rough terrain with ease. The TQi 2.4 GHz radio system offers programmable controls and dual-rate adjustments for personalized driving. Everything you need is included: high-capacity 2-cell LiPo battery, USB-C charger with iD technology, and a complete chassis engineered for both speed and reliability.
