37454-4 Rustler 2WD Brushless | The RC Shop at Dr Dans

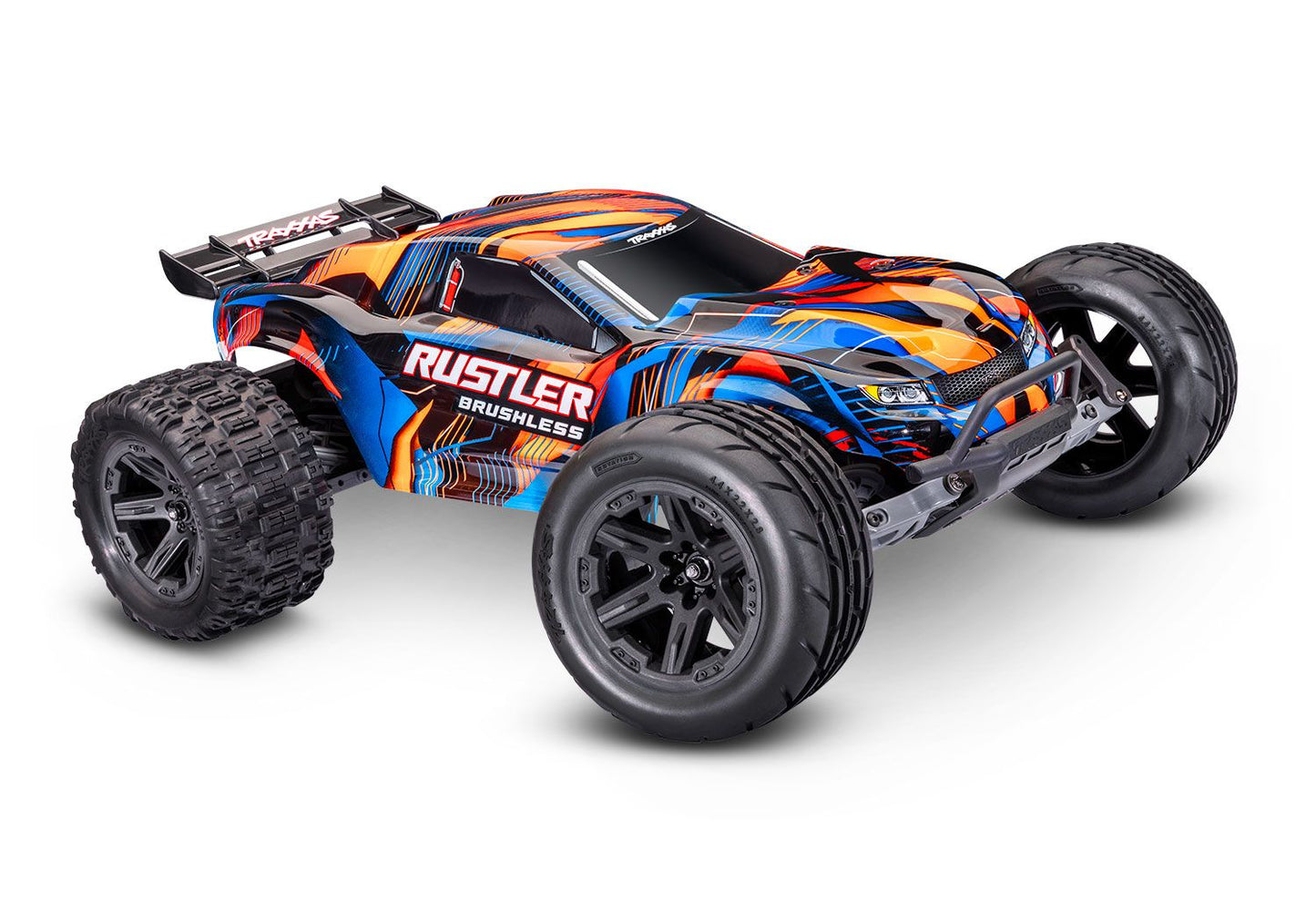

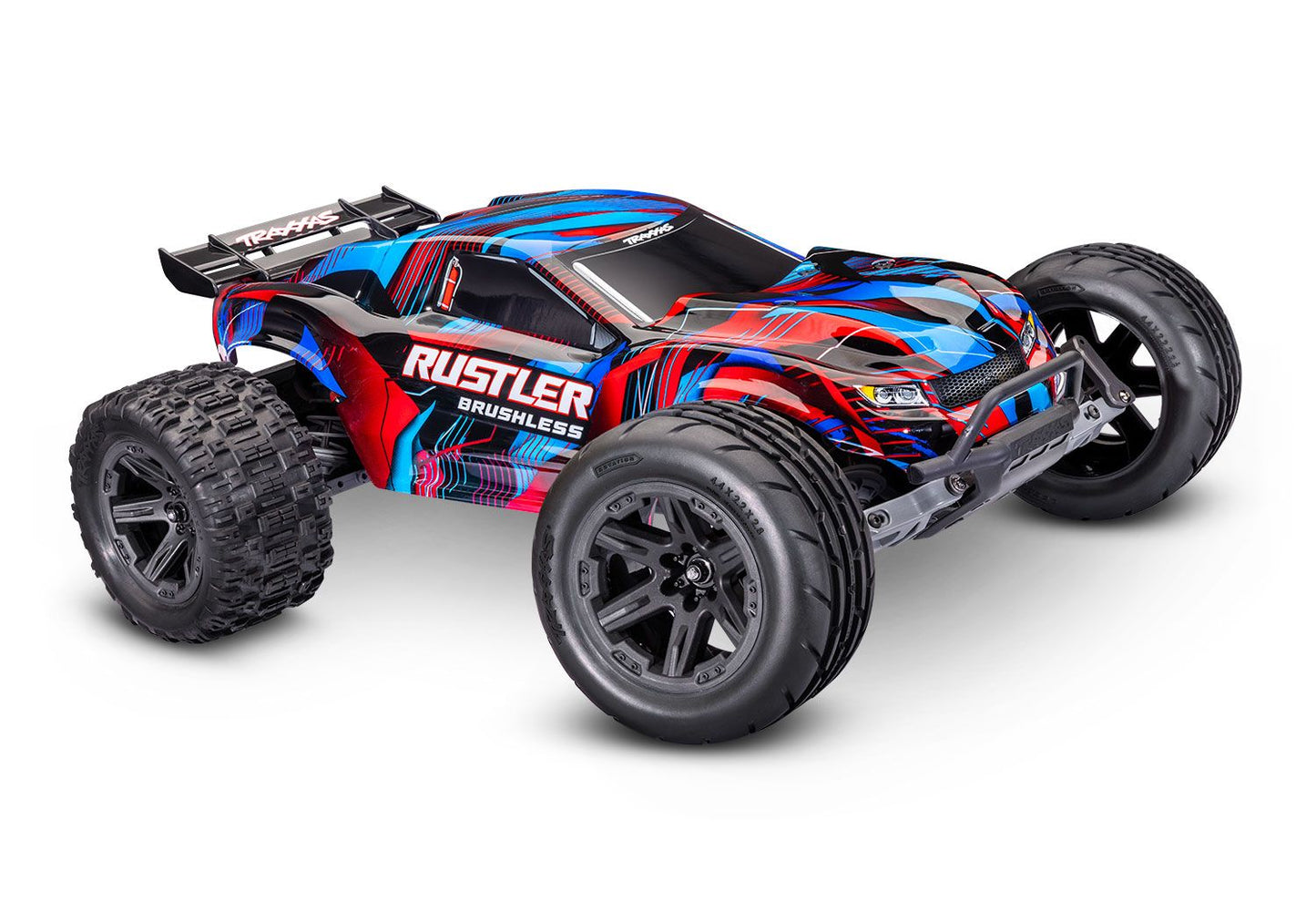

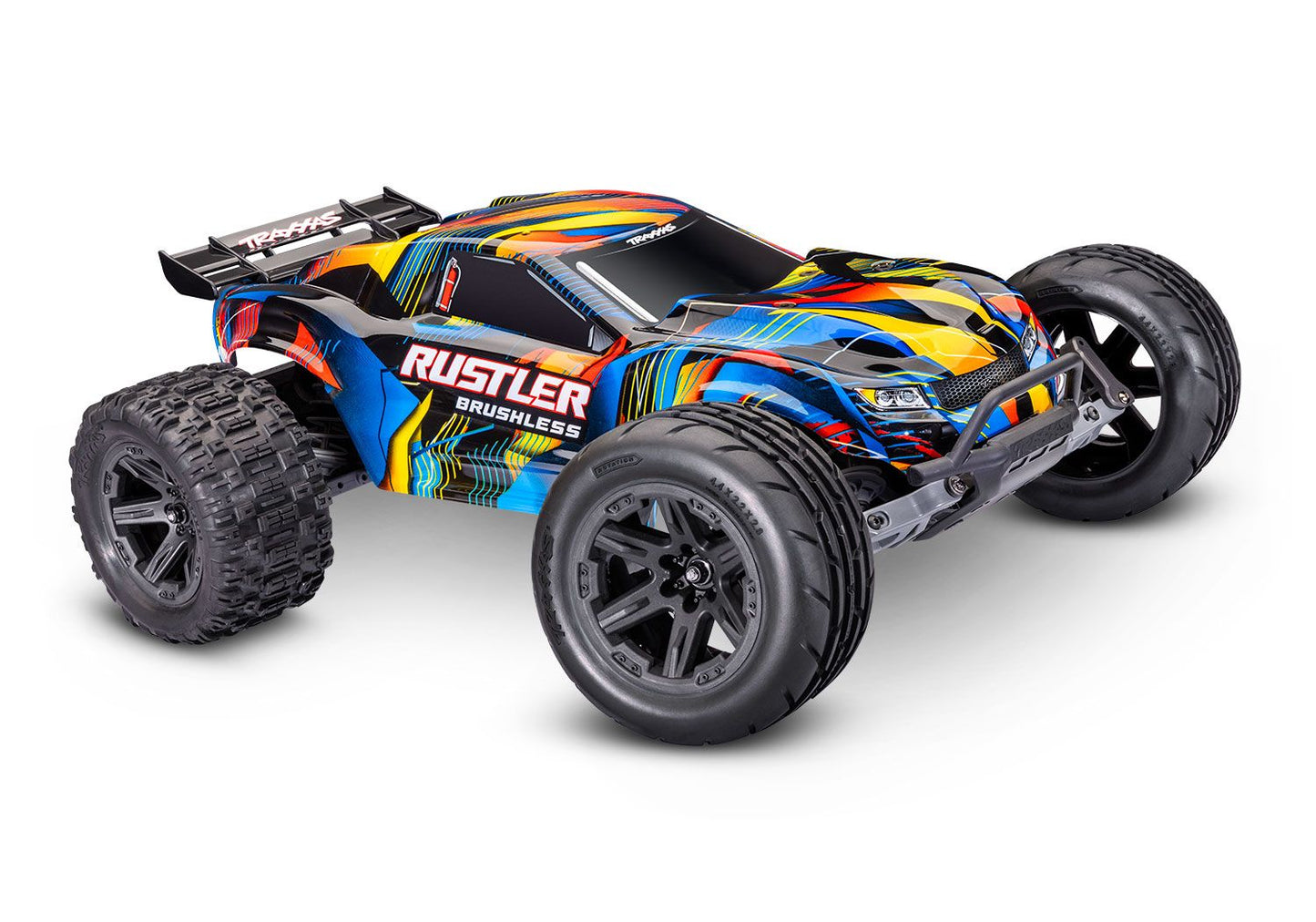

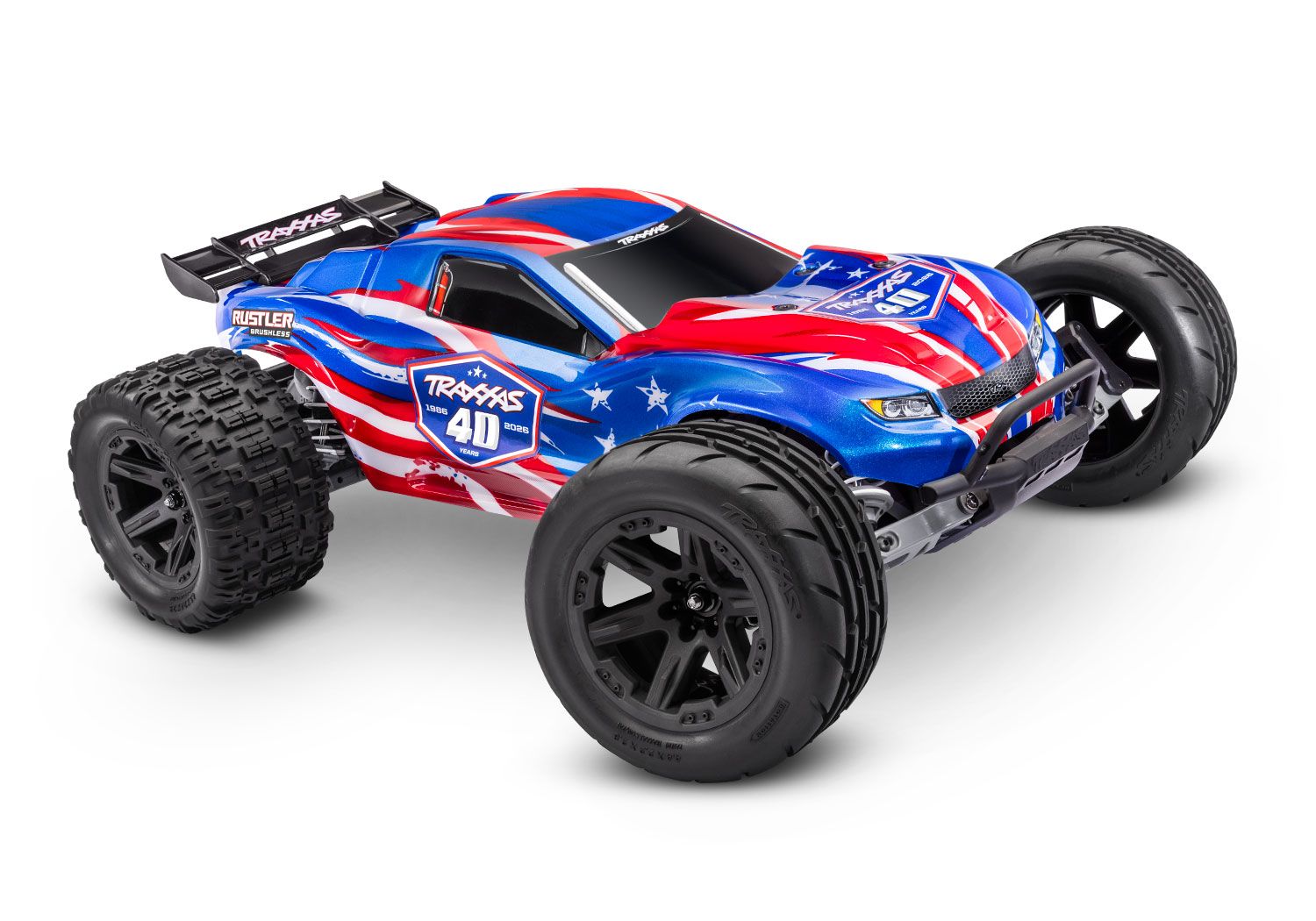

MODEL 37454-4: Rustler® 2WD Brushless: 1/10 scale stadium truck, fully-assembled, waterproof, Ready-To-Race®, with TQi™ Sport 2.4 GHz 2-channel radio system with TSM®, Velineon® 3s brushless power system, and clipless painted body. Requires: battery and charger.
What’s In The Box:
Rustler 2WD stadium truck with VX3 ESC and V3200 motor
TQi Sport 2.4 GHz radio system
High quality maintenance tools
What You’ll Need:
Batteries
Rustler 2WD Brushless requires a single 2-cell or 3-cell LiPo battery.

Charger
The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

Name:	Rustler 2WD Brushless
Type:	Brushless Stadium Truck
Speed:	40+ mph with 2-cell LiPo, 60+ with 3-cell LiPo
Skill Level:	1
Scale:	1/10
Weight:	4.33 pounds (1.96 kg)
Length:	18.5 inches (470 mm)
Width:	12.25 inches (311 mm)
Front Track:	12.25 inches (311 mm)
Rear Track:	12.25 inches (311 mm)

Height:	7 inches (178 mm)
Wheelbase:	11.4 inches (289 mm)
Driveline:	2WD
Transmission:	Magnum 272™
Differential Type:	Planetary steel gear
Gear Ratio (Internal):	2.72 (final drive: 10.17)
Gear Pitch:	32 pitch
Steering Servo:	2057 metal gear waterproof
Radio System:	TQi™ Sport 2.4 GHz 2-channel radio with TSM®
Battery Compartment Specs:	166 mm X 47.5 mm X 28 mm

MOTOR SPECS

Name:	Velineon V3200 (patent pending)
Motor Type:	Sensorless brushless
Weight:	7.48 ounces (212 g)
Length:	3.15 inches (80 mm)
Diameter:	1.53 inches (39 mm)
Shaft Size:	5 mm
Connector Type:	3.5 mm Bullet

ESC SPECS

Name:	VX3 Electronic Speed Control
ESC Type:	Brushless
Voltage Range:	2-cell or 3-cell LiPo (NiMH not supported)
Case Size:	2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm)
Weight:	4.20 ounces (119 g)
BEC Voltage:	6.0 volts
Motor Connectors:	3.5 mm Bullet
Battery Connectors:	Traxxas High-Current Connector
