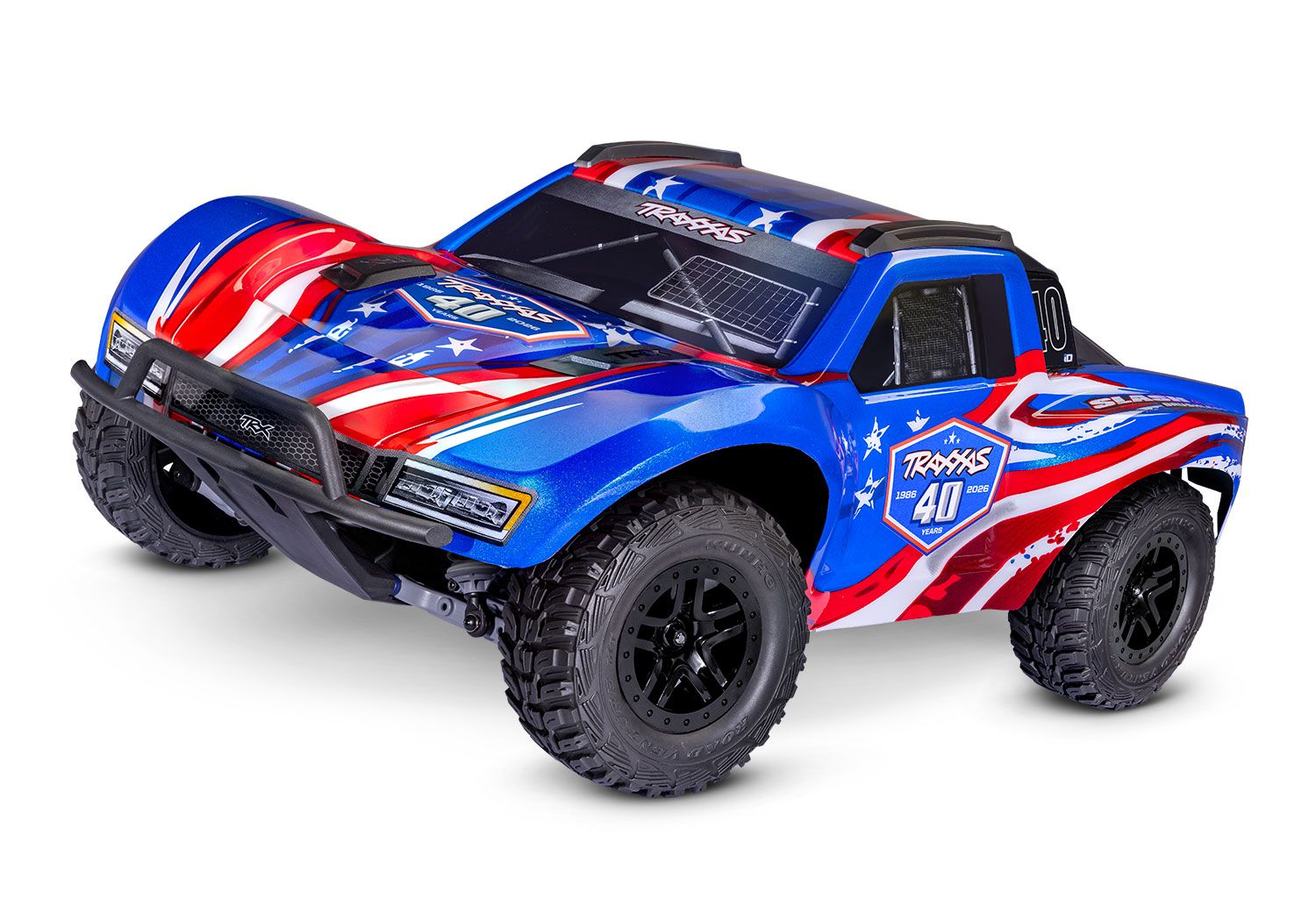

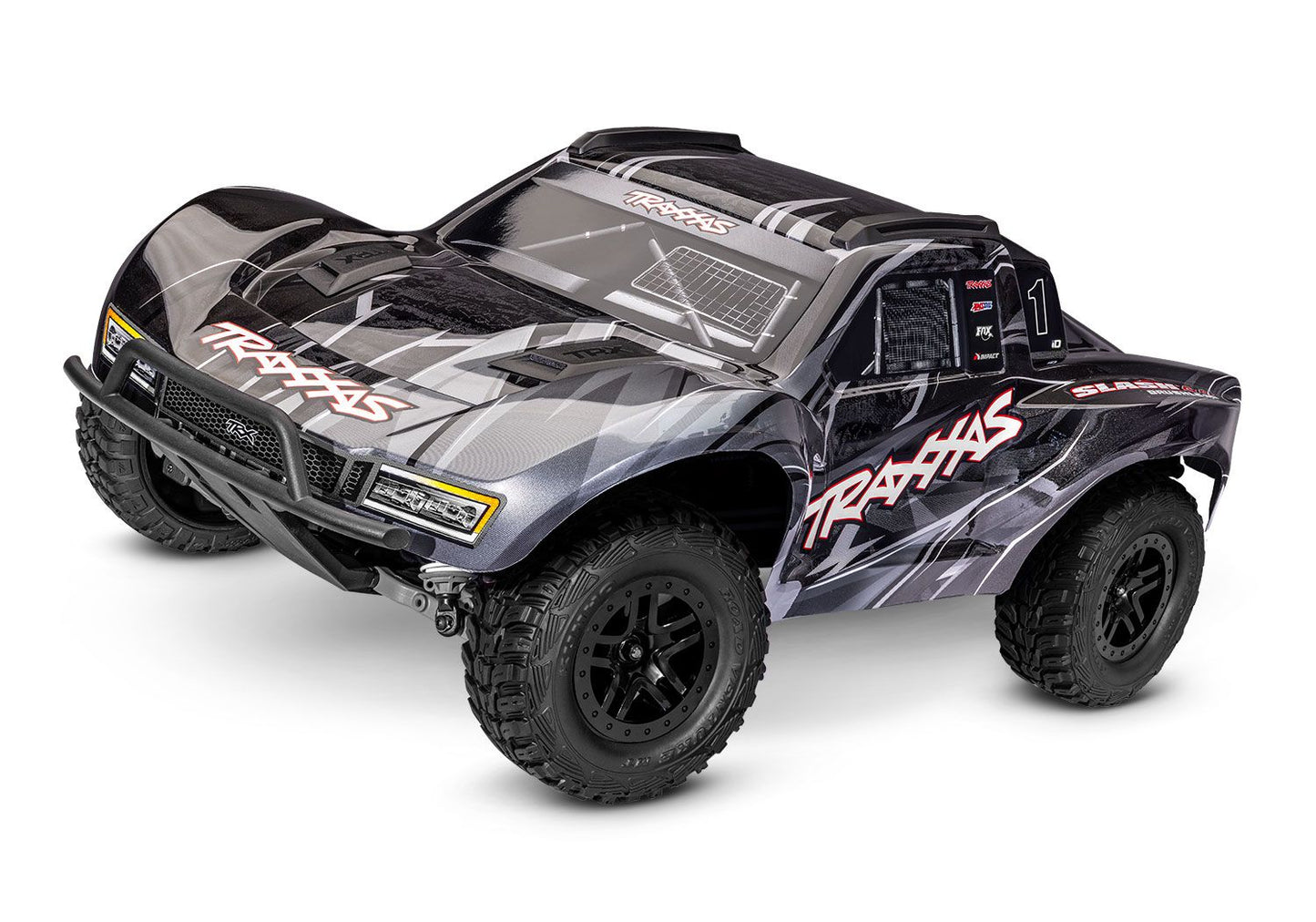

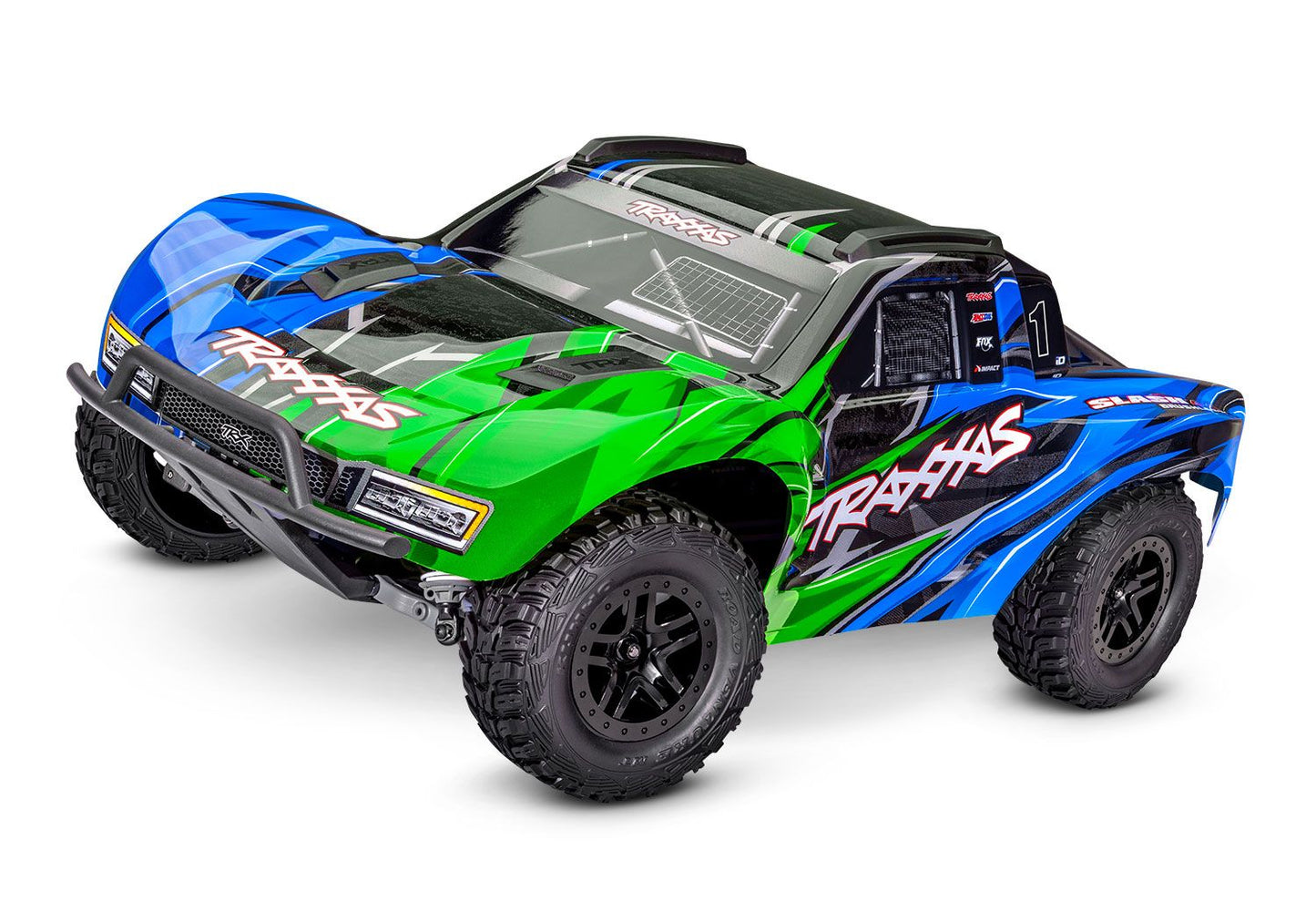

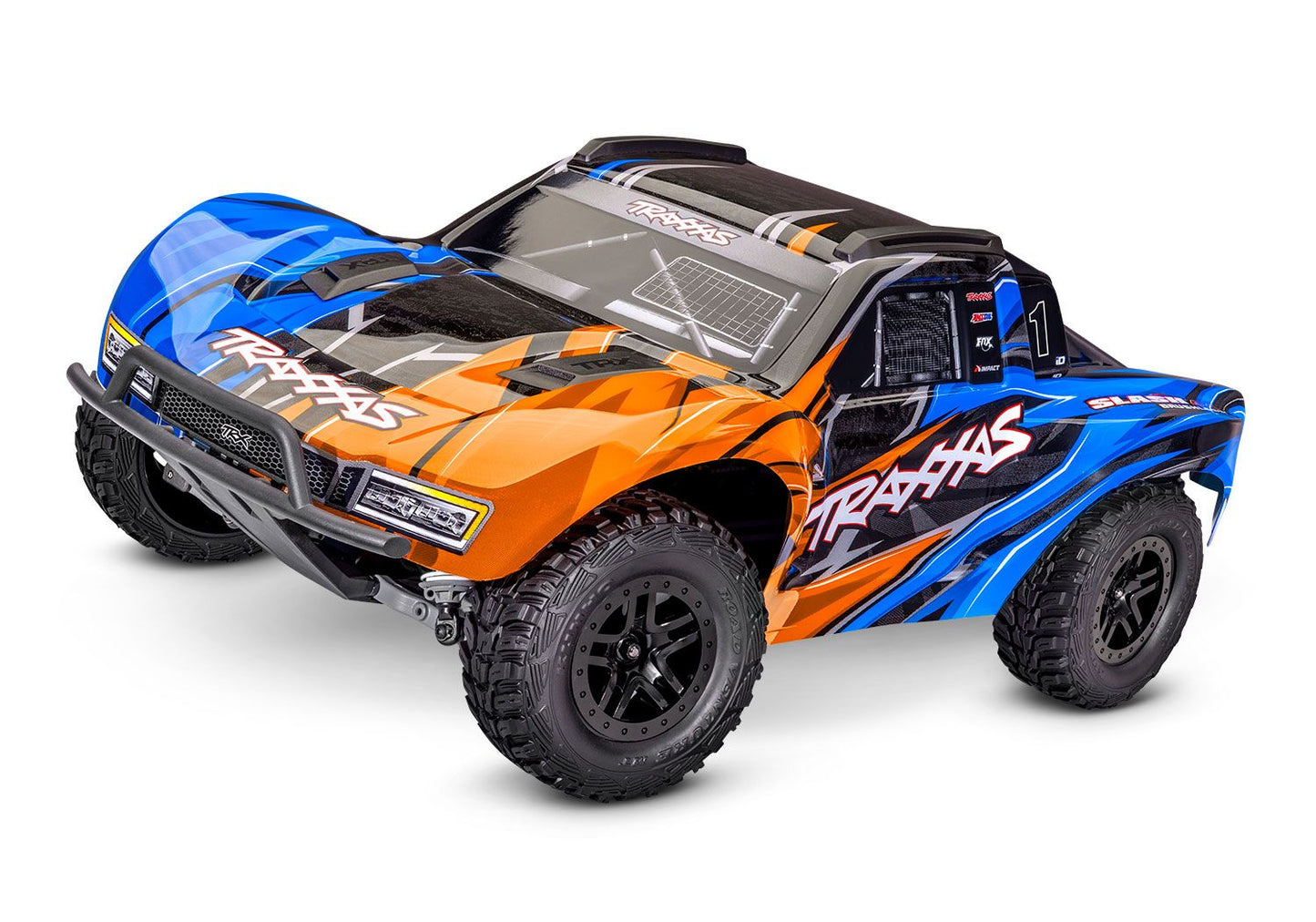

MODEL 68454-4: Slash® 4X4 Brushless: 1/10 scale 4WD short course truck, fully-assembled, waterproof, Ready-To-Race®, with TQi™ Sport 2.4 GHz 2-channel radio system with TSM®, Velineon® 3s brushless power system, and clipless painted body. Requires: battery and charger.
What’s In The Box:
Slash 4X4 short course truck with VX3 ESC and V3200 motor
TQi Sport 2.4 GHz radio system
High quality maintenance tools
What You’ll Need:
Batteries
Slash 4X4 Brushless requires a single 2-cell or 3-cell LiPo battery.

Charger
The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

Name:	Slash 4X4 Brushless
Type:	Short Course Truck
Speed:	35+ mph with 2s LiPo battery, 50+ mph with 3s
Skill Level:	1
Scale:	1/10
Weight:	5.82 pounds (2.64 kg)
Length:	22.36 inches (568 mm)
Width:	11.65 inches (296 mm)
Front Track:	11.65 inches (296 mm)
Rear Track:	11.65 inches (296 mm)

Height:	7.6 inches (193 mm)
Wheelbase:	12.75 inches (324 mm)
Center Ground Clearance:	1.85 inches (47 mm)
Driveline:	Shaft-driven 4WD
Front & Rear Differentials:	Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):	11.82:1
Gear Pitch:	32 pitch
Steering Servo:	2057 metal gear waterproof
Radio System:	TQi™ Sport 2.4 GHz 2-channel radio with TSM®
Battery Compartment Specs:	165 mm X 50 mm X 23 mm / 25 mm

MOTOR SPECS

Name:	Velineon V3200 (patent pending)
Motor Type:	Sensorless brushless
Weight:	7.48 ounces (212 g)
Length:	3.15 inches (80 mm)
Diameter:	1.53 inches (39 mm)
Shaft Size:	5 mm
Connector Type:	3.5 mm Bullet

ESC SPECS

Name:	VX3 Electronic Speed Control
ESC Type:	Brushless
Voltage Range:	2-cell or 3-cell LiPo (NiMH not supported)
Case Size:	2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm)
Weight:	4.20 ounces (119 g)
BEC Voltage:	6.0 volts
Motor Connectors:	3.5 mm Bullet
Battery Connectors:	Traxxas High-Current Connector
