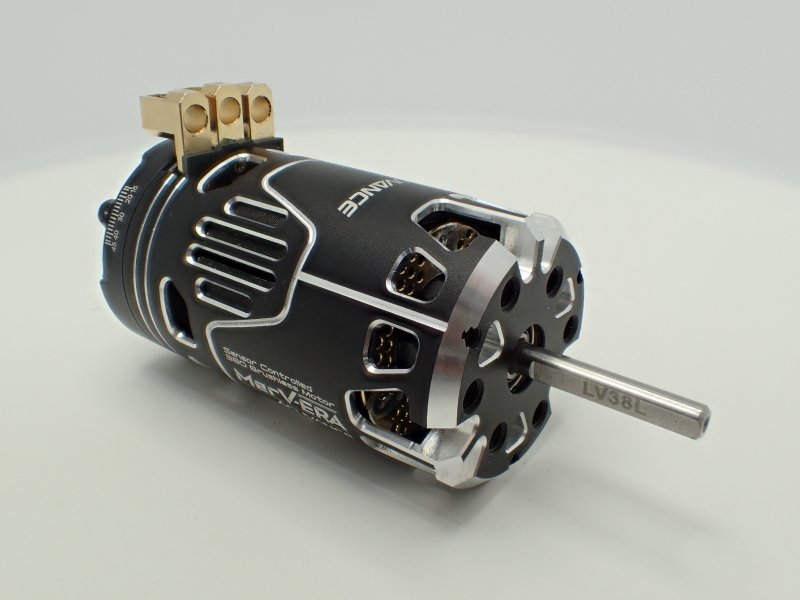

ACUVANCE A’s LAB MerV-ERA Sensored Brushless RC Drift Motor w/ LV38L Rotor – 10.5T / 13.5T

Experience ACUVANCE’s premium compact motor technology with the A’s LAB MerV-ERA Sensored Brushless Motor with factory-installed LV38L L Rotor.

Developed for high-performance 1/10 RC drifting, the A’s LAB MerV-ERA combines the lightweight characteristics of a compact 380-size motor with strong RPM, torque, and throttle response normally associated with larger competition motors.

The factory-installed A’s LAB LV38L rotor uses high-quality neodymium magnets and is tuned to deliver a smoother, more natural, and torque-rich power feel through the low-, mid-, and high-RPM ranges. This makes the motor especially well suited for RWD drifting where precise throttle control, smooth transitions, and predictable acceleration are critical.

The MerV-ERA also features ACUVANCE technologies including an adjustable timing system, M.F.C.S. rotor tuning compatibility, Tri-Blade cooling system, vibration-reduction construction, and Direct Power Terminal System.

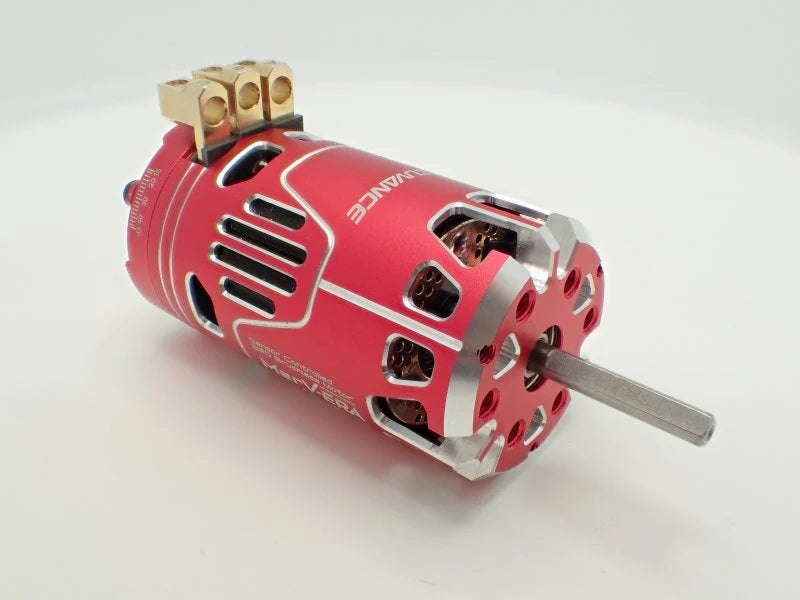

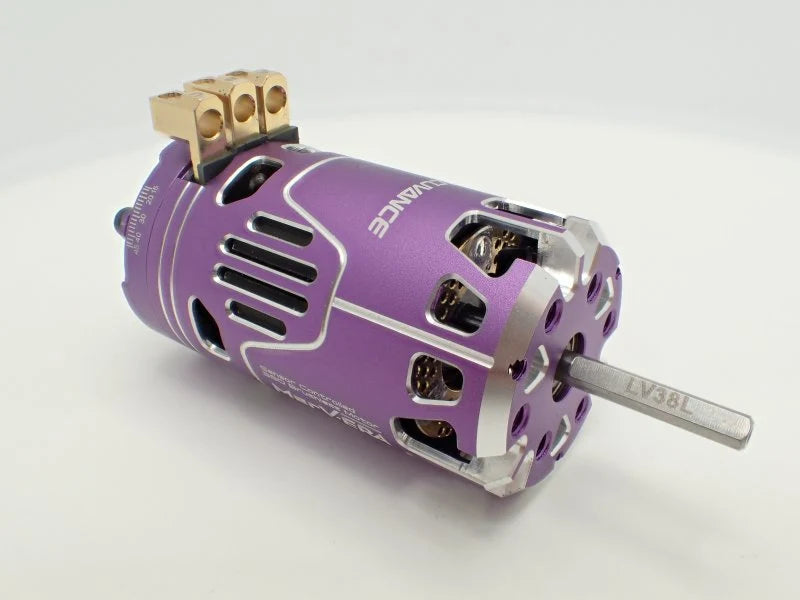

Available in 10.5T and 13.5T, with Black, Red, and Purple color choices.

Limited-production A’s LAB model.

Key Features

• Premium ACUVANCE A’s LAB motor
• MerV-ERA compact sensored brushless platform
• Factory-installed LV38L L Rotor
• Designed for high-performance RC drifting
• Smooth, torque-rich throttle response
• High-quality neodymium magnet rotor
• Adjustable motor timing
• M.F.C.S. interchangeable rotor system
• Tri-Blade cooling system
• Vibration-reduction motor construction
• Direct Power Terminal System
• Star-wound motor design
• High 92% efficiency
• Compatible with ACUVANCE sensored brushless ESC systems
• Available in 10.5T and 13.5T
• Black, Red, and Purple finishes
• Limited-production model

Motor Specifications

10.5T

Motor Turn: 10.5T
KV Rating: 5720KV
Rated Power: 250W
Efficiency: 92%
Rotor: A’s LAB LV38L
Winding: Star Winding

13.5T

Motor Turn: 13.5T
KV Rating: 4500KV
Rated Power: 190W
Efficiency: 92%
Rotor: A’s LAB LV38L
Winding: Star Winding

Shared Specifications

Brand: ACUVANCE
Premium Series: A’s LAB
Motor Series: MerV-ERA
Motor Type: Sensored Brushless
Input Voltage: 4.2V–8.6V
Motor Length: 52mm
Rotor Type: A’s LAB LV38L Standard Rotor
Cooling System: Tri-Blade
Application: RC Drift / Competition RC
Available Colors: Black / Red / Purple

ACUVANCE rates the A’s LAB version at 5720KV for 10.5T and 4500KV for 13.5T, measured at 7.2V with the default 30° timing setting.

What's Included

• (1) ACUVANCE A’s LAB MerV-ERA Motor
• Factory-installed LV38L L Rotor
• (3) 3mm male motor connectors
• Manufacturer documentation
