Addiction RC RX-01 1/10 RWD Drift Chassis Kit | AD-RX01

Product Description

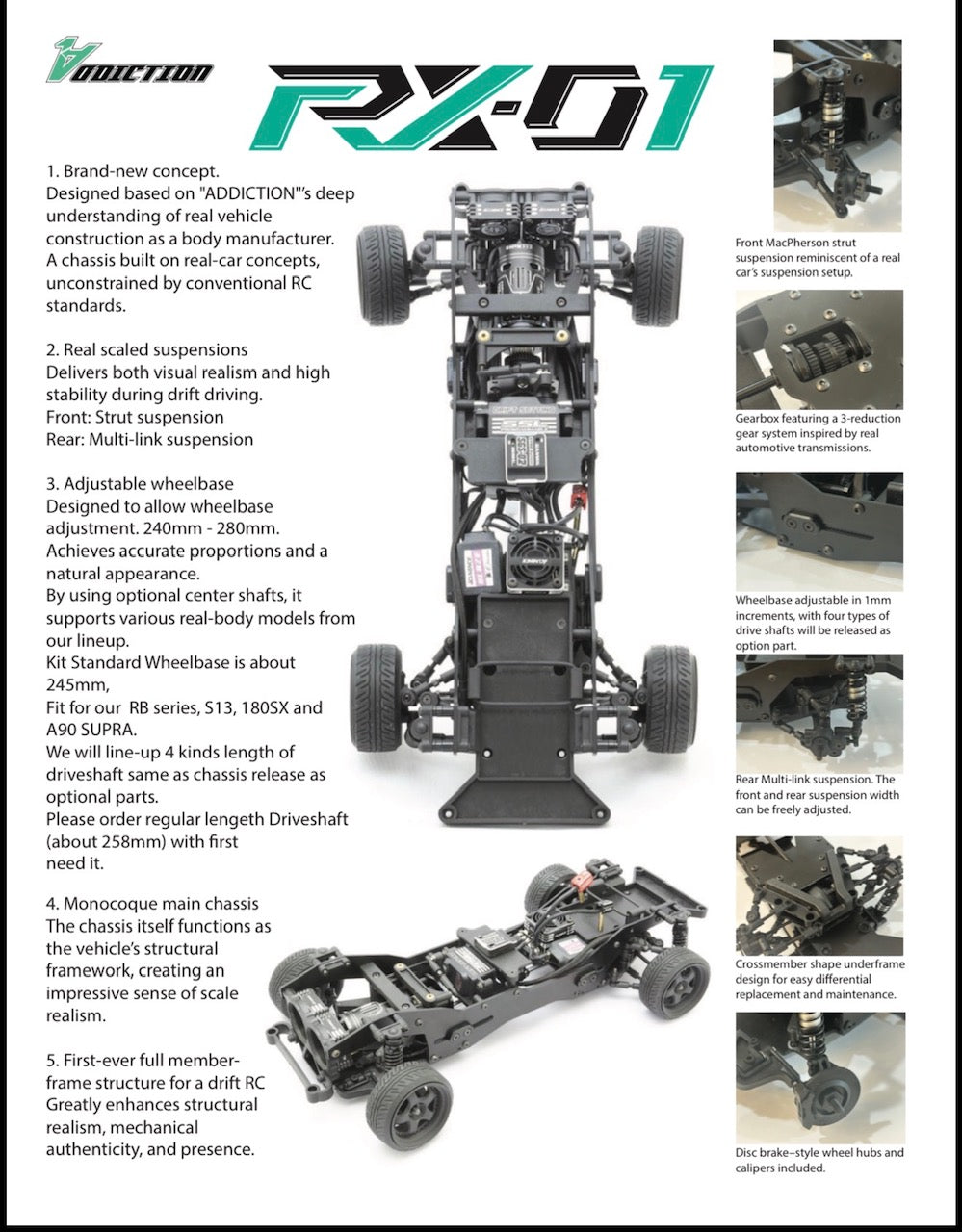

The Addiction RC RX-01 is a highly detailed 1/10-scale RWD drift chassis designed around real automotive construction concepts.

Rather than using a conventional flat RC chassis layout, the RX-01 incorporates a monocoque-style main chassis and a full member-frame structure, creating a much more realistic mechanical appearance and giving the chassis the look and feel of a scaled-down full-size vehicle. Addiction RC developed the platform using its experience designing highly detailed scale bodies.

The suspension also follows real-car principles. The RX-01 uses a strut-style front suspension and multi-link rear suspension, combining scale realism with stability during drift driving.

One of the RX-01's biggest advantages is its adjustable wheelbase. With the appropriate optional center shafts, the chassis can be configured from approximately 240mm to 280mm, allowing it to accommodate a broad range of scale drift bodies. The standard kit configuration uses a 247mm wheelbase.

Addiction specifically lists compatibility with Real Detail bodies such as the Supra, S13 Silvia, and 180SX, with additional wheelbases supported through optional center shafts.

Key Features
1/10-scale rear-wheel-drive drift chassis
Adjustable 240mm–280mm wheelbase
Standard wheelbase: 247mm
Real-car-inspired monocoque main chassis
Full member-frame chassis structure
Strut-style front suspension
Multi-link rear suspension
Highly detailed scale-oriented construction
Designed for Addiction RC Real Detail bodies
Optional center shafts allow additional wheelbase configurations
Designed around a 380-size motor system
Required to Complete

The following equipment is required to complete and operate the chassis:

380-size motor
ESC
Drift gyro
Steering servo
Transmitter
Receiver
Short-format LiPo battery
Body
Wheels
Drift tires
Battery charger
Cooling fan, optional
Wheelbase

Adjustment Range: 240mm–280mm
Standard Kit Wheelbase: 247mm

Different wheelbases require the appropriate optional center shaft. Addiction lists a 135mm center shaft for the 247mm S13 / 180SX / A90 configuration, along with other shaft lengths for additional wheelbases.

Package Includes
Addiction RC RX-01 chassis kit
Chassis components
Suspension components
Hardware included by Addiction RC

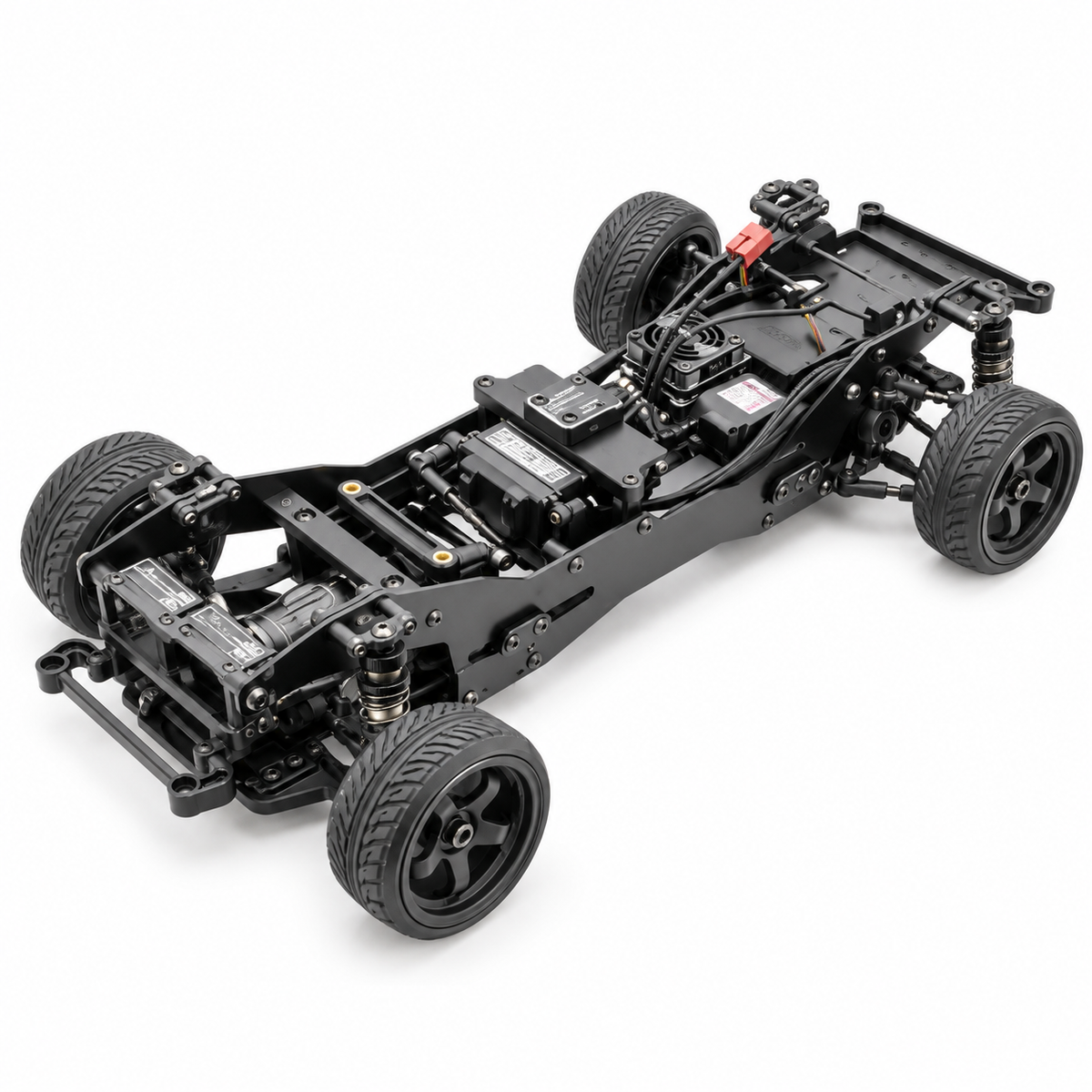

Motor, electronics, radio system, battery, body, wheels, and tires are not included. Product images from some retailers show completed or development chassis builds with electronics and wheels installed, but those components are not part of the chassis kit
