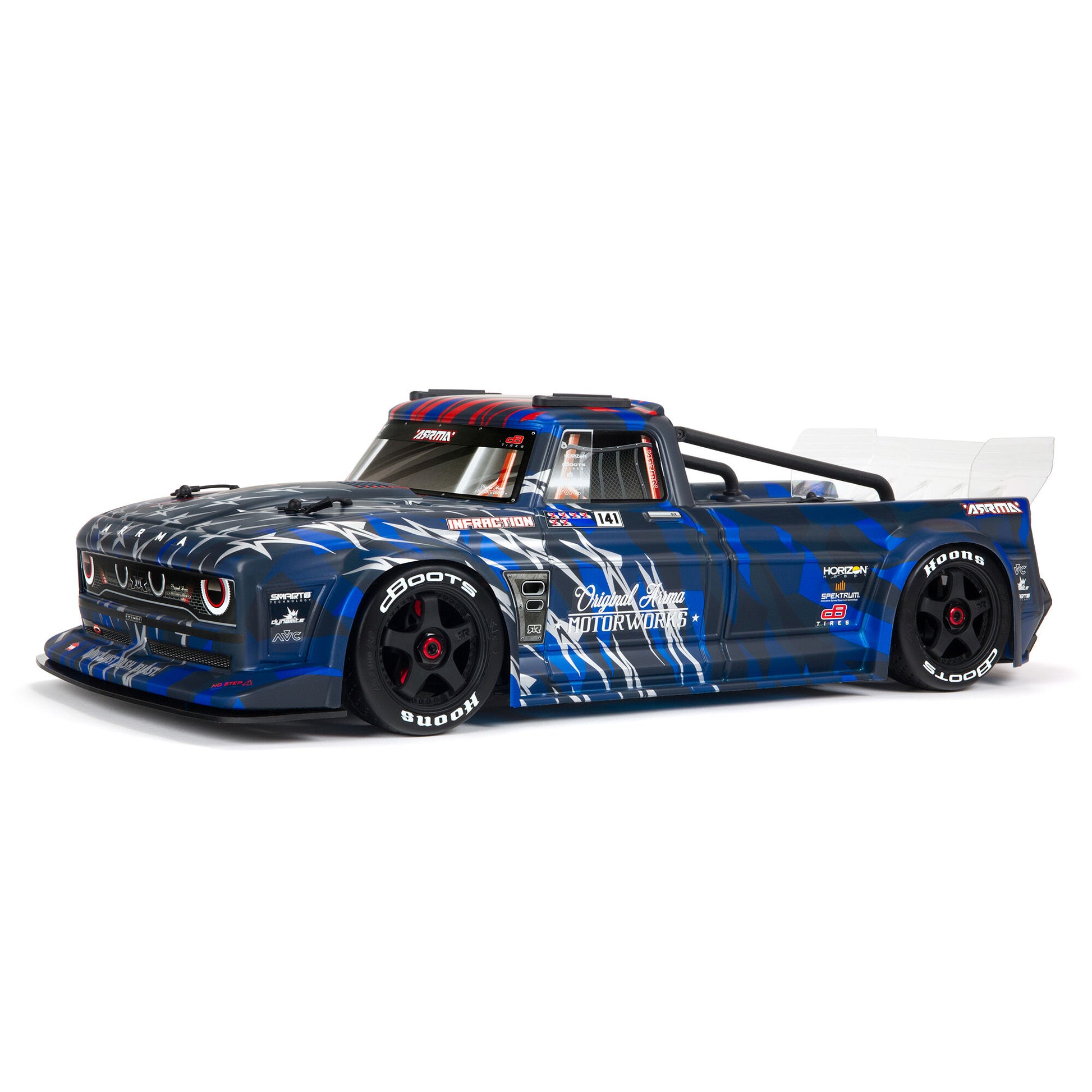

ARA7615V2T1 INFRACTION 6S BLX 1/7 All-Road Truck Blue

Overview

The ready-to-run INFRACTION^™ 6S BLX 4WD 1/7 scale truck tops off a tough and powerful ARRMA^® brushless platform with stunning style — ideal for intermediate-level drivers who are eager to experience street bashing at 80+ MPH speeds (achievable in optimum conditions using a 6S LiPo and the included speed pinion gear). Its Spektrum^® DX3^™ radio and Smart brushless power system components provide real-time telemetry that also helps you reach and maintain maximum performance.

Another feature new to the INFRACTION^™ 6S BLX 4WD is a handbrake. The chassis includes a module for a rear vented disc brake and a powerful Spektrum^® SPMS650 brake servo. You control the handbrake from a convenient switch on the DX3^™ transmitter for thrilling drifting, "hooning" and stunt action.

With its 4X4 traction, you can run the INFRACTION^™ 6S BLX 4WD on all roads, in all conditions — over loose gravel, asphalt, smooth dirt, and short grass, in the sun, rain, and ice — while enjoying fresh RESTO MOD looks. The street body arrives factory-finished with new matte gloss effect designs. The included tunable wing lets you customize the downforce just the way you want it.

To further enhance the aerodynamics, the chassis includes a full-width front splitter that balances downforce distribution. A rear diffuser increases downforce and grip, enabling you to corner faster and with confidence. Mounted on realistic 5-spoke wheels, the four dBoots^® Hoons^™ all-road tires keep their grip on the surface to pour on speed or stop on a dime.

Underneath those streamlined Street Bash looks is a chassis which proves to the world, once again, that ARRMA^® builds the most durable bashers. The 6061-T6 anodized aluminum chassis houses a heavy-duty drivetrain with steel driveshafts, plus all-metal diff outdrives and gearbox internals. Updated internal gears feature a new tooth profile for increased strength. A lower internal gear ratio reduces the center line transmission RPM, reducing the center drive shaft resonance and increasing drivetrain durability. Chassis toughness is reinforced with a center brace. Bearings are rubber-shielded, and the adjustable, oil-filled, anodized aluminum shocks are mounted on strong, black-anodized aluminum shock towers.

ARRMA^® has equipped the ready-to-run INFRACTION^™ 6S BLX 4WD with the 3-channel Spektrum^® DX3^™ radio and an SR6110AT receiver featuring AVC^® (Active Vehicle Control^™) technology for high-speed stability. A convenient voltage level indicator is built into the transmitter which lets you easily track on-board Smart battery power. The vehicle's brushless power system also features Spektrum^® Firma^™ Smart components, so it's easy to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM. Just download the Spektrum^® Dashboard^™ app for iOS or Android, available for free at the App Store or Google Play.

Ball BearingsFull setBatterySold SeparatelyBattery Tray Dimensions5.45 x 1.83 x 1.38 in (138.5 x 46.5 x 35mm)BodyINFRACTION, Screen printed, Decaled, TrimmedBrakesIntegral with ESC / Metal Disk with Pads (Hand Brake)Bushing MaterialMetalChargerSold SeparatelyChassis0.12 in (3mm) Plate, 6061-T6 AluminumColor VariantBlueCompletion LevelReady-To-RunConnector TypeIC5DifferentialThree oil-filled metal gearDrive TypeForward/Brake/ReverseDrivetrain4WDFinal Drive Ratio8.58:1Front Track12.13" (308mm)Gear Pitch1.0MODGround Clearance0.59" (15mm)Internal Gear Ratio2.8:1LiPo Compatibility4S, 6SMax Battery Dimensions5.5 x 1.85 x 1.5" (140 x 47 x 38mm)Motor SizeFirma™ 4074 2050Kv Brushless MotorMotor TypeBrushlessPinion15TPower System6SPower TypeElectricProduct Height7.87" (200 mm)Product Length27.36" (695 mm)Product Weight11lb (5kg)Product Width12.2" (310 mm)RadioIncludedRear Track12.01 in (305mm)ReceiverIncludedScale1/7ServosIncludedShock Type3.03 in (77mm) FR, 3.43 in (87mm) RR. aluminum body, oil-filledSpeed ControlIncludedSpur Gear46TSuspensionIndependentTechnology AVC and SMARTTire TreadHoonsTop Speed80+Top Speed (ARA)80+Vehicle SizeLargeVehicle TypeAll-RoadWater-ResistantYesWheel Hex Size17mmWheelbase15.98 in (406mm)
