EdgeFlex Springs ver. 1.0 / ver. 2.0 [BARELL] BRL-SG01 BRL-SG02

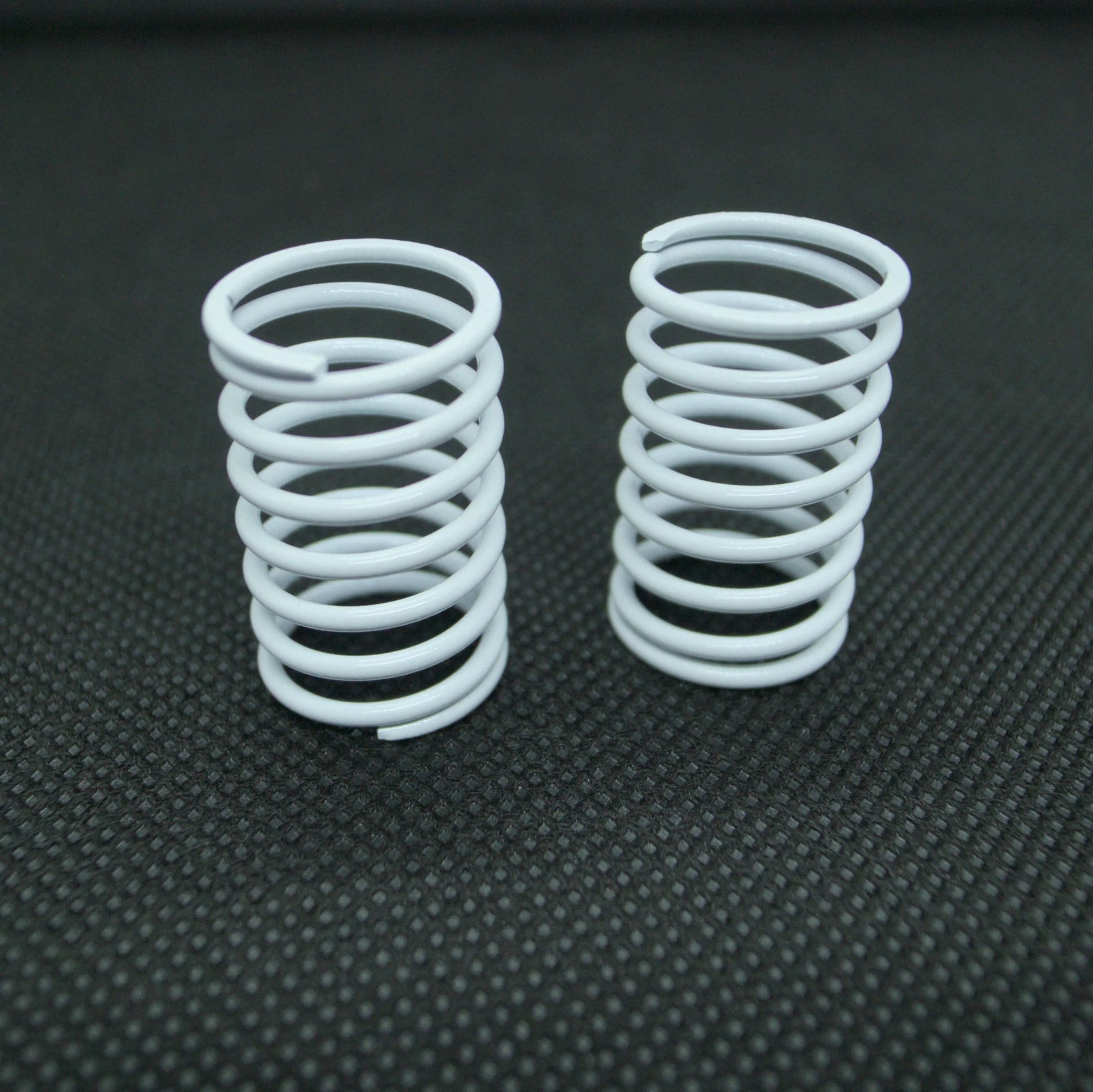

Barell's EdgeFlex springs comes in pairs.
They offer 2 types:

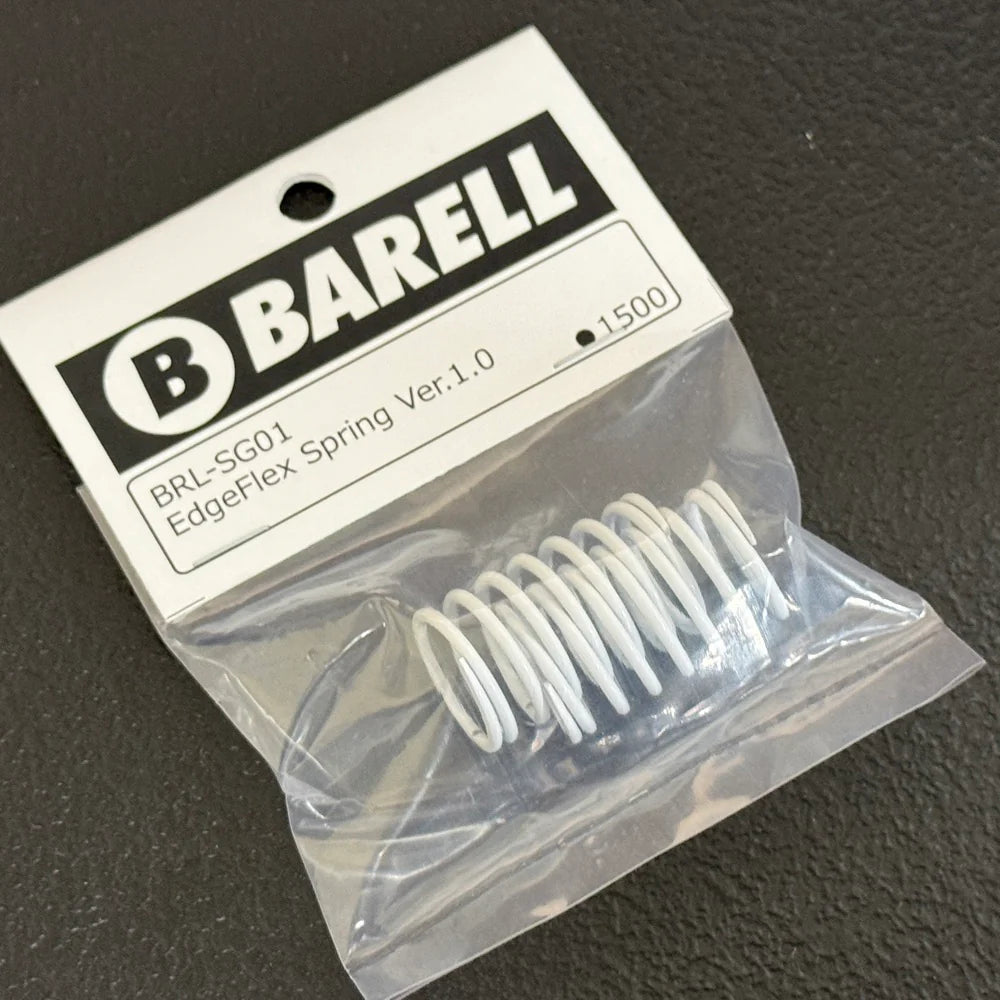

BRL-SG01 Ver 1.0:
Length: 27mm
Wire Diameter: 1.5mm
8 Coils

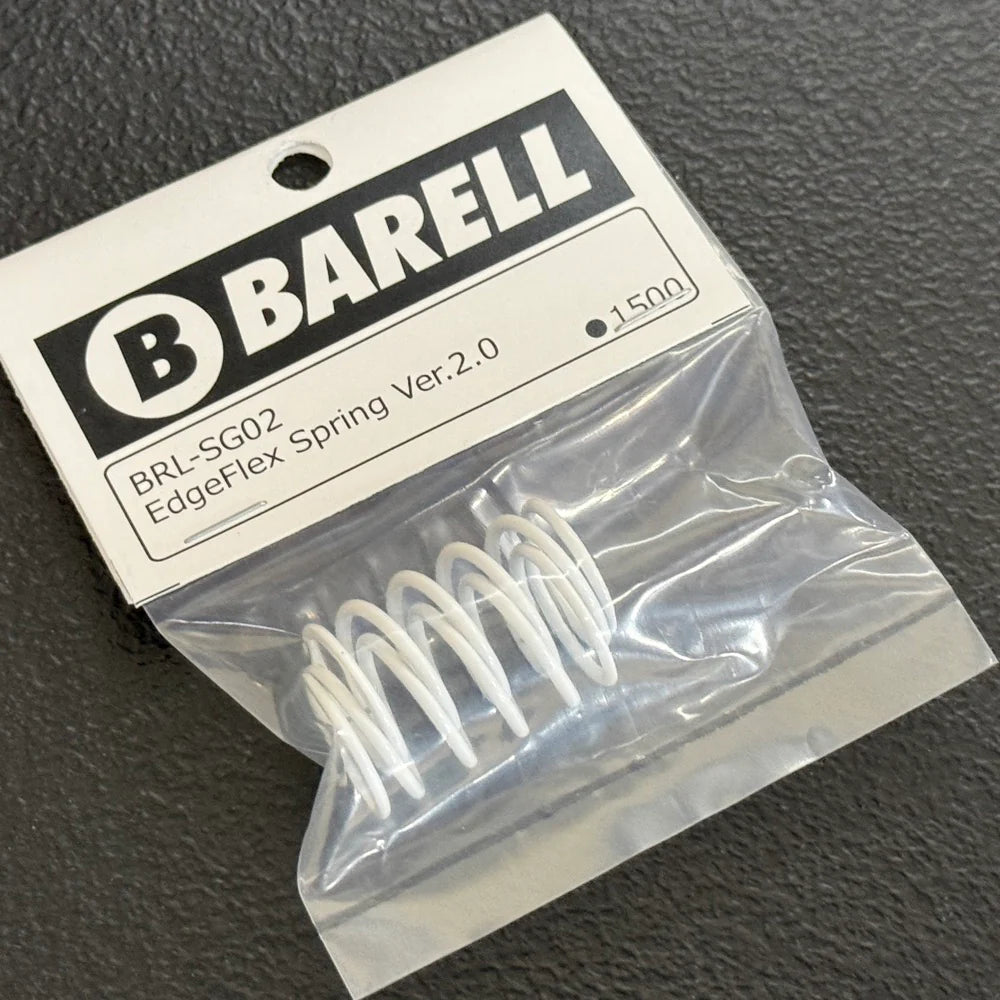

BRL-SG02 Ver 2.0:
Length: 27mm
Wire Diameter: 1.5mm
6 Coils

EdgeFlex17 Springs ver. 1.0 / ver. 2.0 [BARELL] BRL-SG03 BRL-SG04

A new lineup has been added to the EdgeFlexSpring series!
While maintaining the traditional spring characteristics, the overall length has been shortened to 17mm, allowing you to experience a different response and rolling behavior than ever before!
[2 pieces]

Barell's EdgeFlex17 springs comes in pairs.
They offer 2 types:

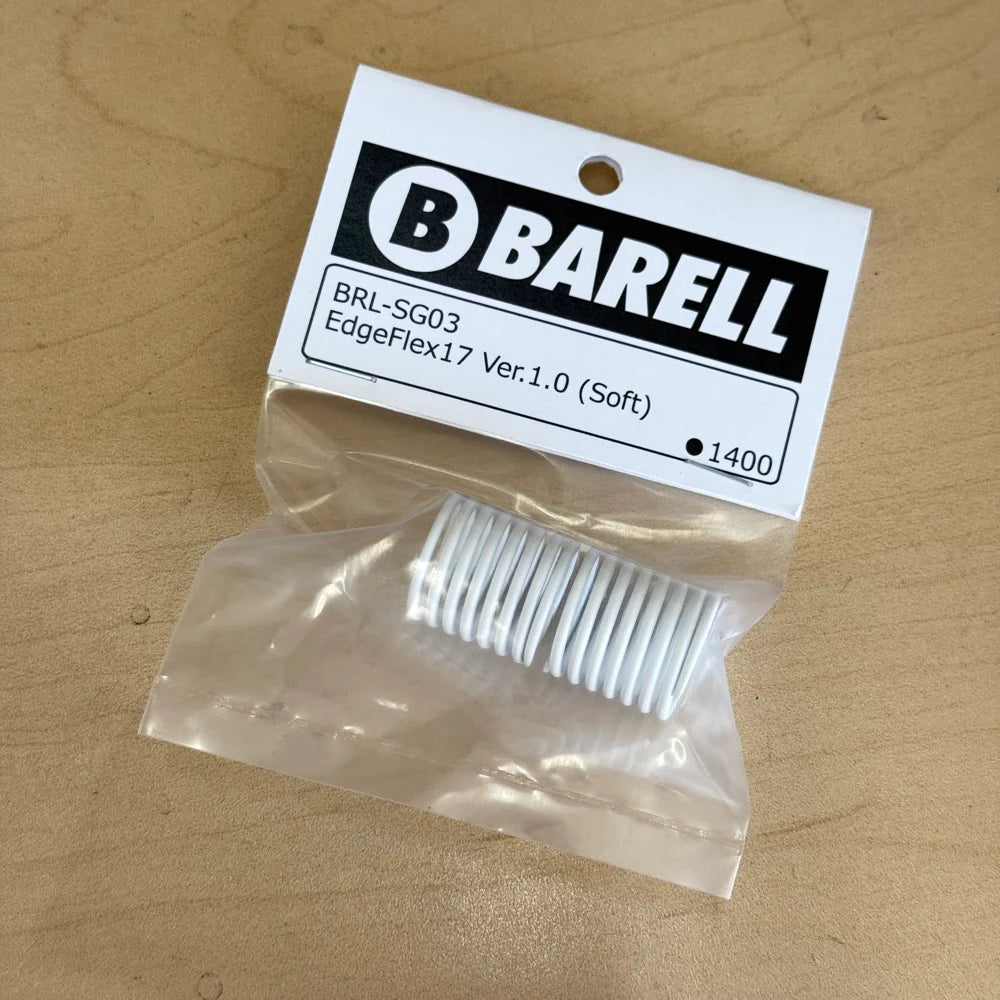

BRL-SG03 Ver 1.0:
SOFT

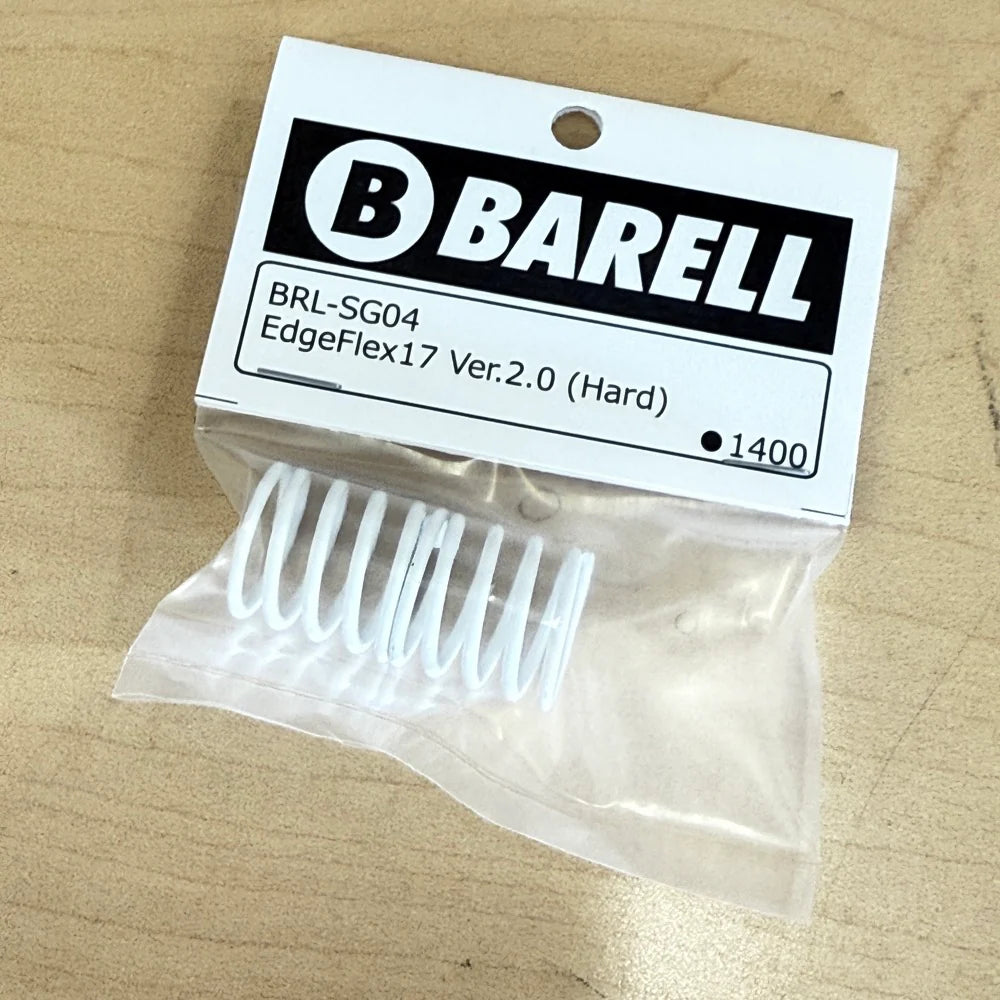

BRL-SG04 Ver 2.0:
HARD

=======

EdgeFlex Spring is characterized by its excellent balance of "kick-off" and "load-bearing" during drifting. Version 1.0 is designed to maintain load without being repelled, even when using soft oil. This spring can be used on both the front and rear, and using it as a front and rear set allows you to fully experience its benefits. As a competition-oriented spring, it aims to prevent large body rolls and retain the load applied, providing a solid and controlled feel.

Since this spring has significantly different characteristics compared to general ones, it is recommended to use it as a front and rear set. Also, for the best results, it is advisable to use it without applying preload initially. For lightweight chassis like the RDX, the 8-coil (Ver.1.0) springs are recommended for both the front and rear!

Length: 27mm
Wire Diameter: 1.5mm
8 Coils

===========================

The Edge Flex Spring is known for its excellent balance between "kick-out" and "load-bearing" characteristics during drifting.

Version 2.0 maintains the previous spring characteristics but increases the spring rate to compensate for areas that Version 1.0 couldn't fully cover due to lever ratio and vehicle weight issues.
We recommend trying Version 1.0 both front and rear first, and considering Version 2.0 if you find it insufficient.
These springs can be used on both the front and rear, and because they have the same overall length as Version 1.0, they can be used in various combinations as a set for both ends.
Designed for competitive use, these springs aim to provide a feeling of not losing the load placed on them rather than allowing significant rolling.
Specifications

Since this spring has significantly different characteristics compared to general ones, it is recommended to use it as a front and rear set. Additionally, using it without applying preload initially will yield better results.

If the 8-coil (Ver.1.0) springs are overwhelmed by the vehicle's weight or if you desire a more direct feel, try using the 6-coil (Ver.2.0) springs.

Length: 27mm
Wire Diameter: 1.5mm
6 Coils
