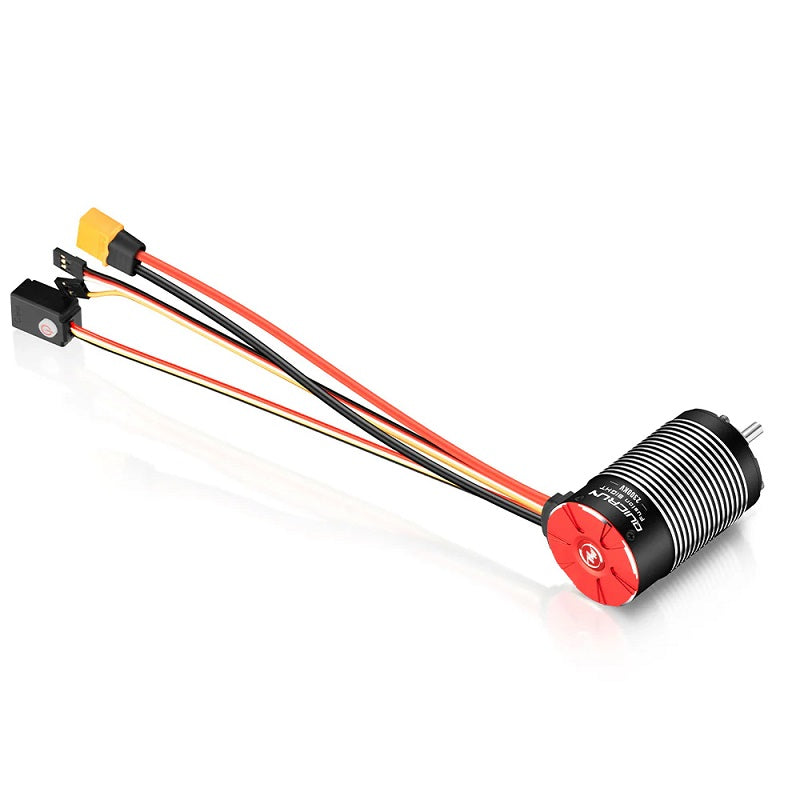

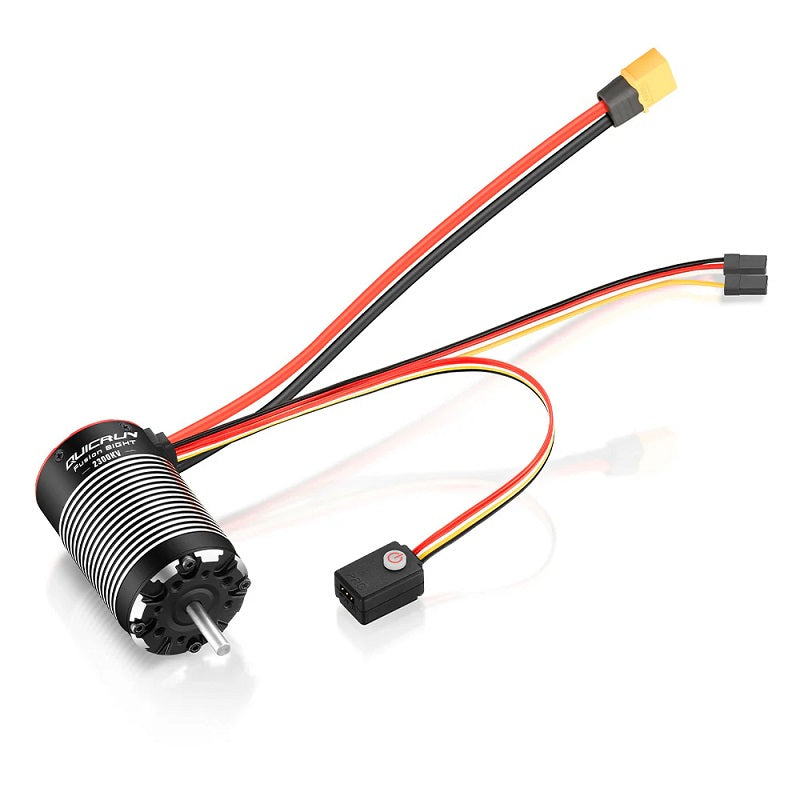

Hobbywing QuicRun Fusion 8IGHT 2300KV FOC 2-in-1 Crawler System – HWI30120404

Upgrade your 1/8-scale crawler with the Hobbywing QuicRun Fusion 8IGHT 2300KV FOC Integrated Power System.

This compact 2-in-1 design combines the ESC and motor into one unit, reducing wiring and simplifying chassis layout. Hobbywing’s FOC control system delivers smooth low-speed response, strong torque, efficient operation, and precise speed control for technical rock crawling. The system is IP67 waterproof and supports 2–4S LiPo power.

Key Features

• 2300KV sensored brushless motor
• Integrated ESC + motor design
• FOC field-oriented control
• 80A continuous / 240A peak current
• 2–4S LiPo compatible
• IP67 waterproof
• Adjustable 6V / 7.4V / 8.4V BEC
• 6A continuous BEC output
• Active drag brake adjustment
• AUX-channel real-time drag brake control
• XT60 battery connector
• Designed for 1/8 rock crawlers

Specifications

Motor KV: 2300KV
Motor Poles: 4
Motor Diameter: 42mm
Motor Length: 69mm
Shaft: 5mm diameter / 18.5mm exposed length
Input Voltage: 2–4S LiPo / 6–12 cell NiMH
BEC: 6V / 7.4V / 8.4V adjustable
Weight: 338g including wiring/connectors
Battery Connector: XT60
