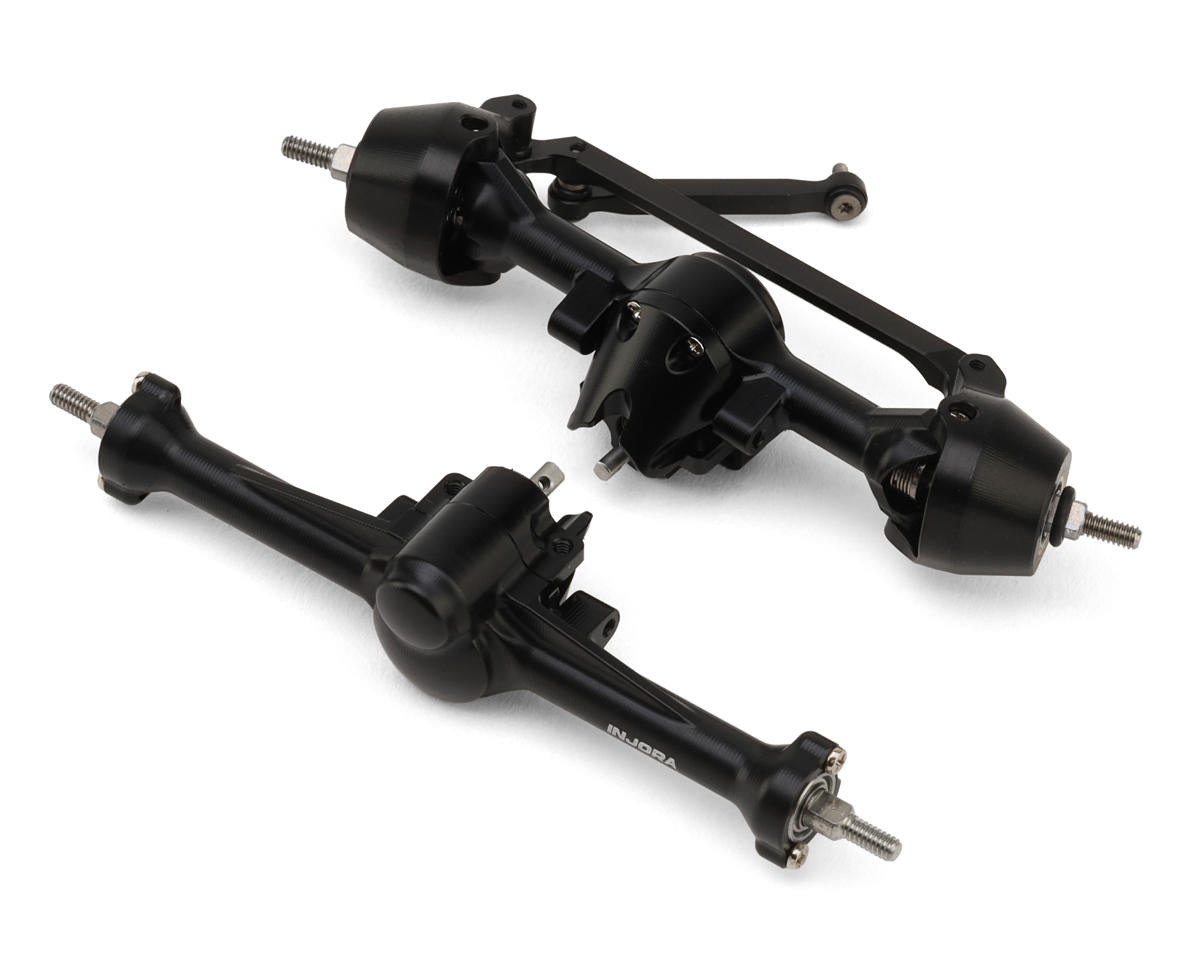

INJORA +4.5mm Planet Axles Front & Rear w/ Double Joint Shafts for Axial SCX30 – INJSCX30-34BKFR

Upgrade the stance, steering angle, and crawling performance of your 1/30 Axial SCX30 with the INJORA +4.5mm Planet Axle Set – INJSCX30-34BKFR.

This complete front and rear axle package features scale-inspired integrated axle housings with planet-style differential covers, upgraded stainless steel double-joint axle shafts, brass steering components, and front overdrive gearing.

The axles add 4.5mm of width per side, helping improve stability while maintaining a proportionate scale appearance. The upgraded double-joint front shafts allow up to approximately 52° of steering angle, giving the SCX30 greater maneuverability on tight crawler courses and technical obstacles.

The front axle uses 2/13T gearing, while the rear uses 2/16T gearing, creating front overdrive to help improve climbing traction and steering control.

Brass steering knuckles and steering links also add useful front-end weight low on the chassis for better climbing performance.

Key Features

• Genuine INJORA SCX30 upgrade
• Complete front and rear axle set
• Designed for 1/30 Axial SCX30
• +4.5mm wider per side
• Planet-style differential cover design
• Stainless steel double-joint axle shafts
• Up to approx. 52° steering angle
• Front overdrive gearing
• Front gear ratio: 2/13T
• Rear gear ratio: 2/16T
• Brass steering knuckles
• Brass steering links
• Aluminum axle housings
• Stainless steel gears and shafts
• Retaining springs help secure joint pins
• Custom compact M2 wheel nuts included

What's Included

• (1) Front Planet Axle
• (1) Rear Planet Axle
• (1) Torx Screwdriver
• (1) Brass Nut Tool
• (4) Custom M2 Wheel Nuts
• (1) Assembly Manual

Important Installation Note

If using the stock SCX30 chassis links with these INJORA axles, replace the factory ball studs with the ball studs included with the axle kit because the required screw length is different.

For metal-to-metal screws, INJORA recommends using a small amount of blue threadlocker and checking that the steering knuckles move freely after installation.
