Introducing the HT rear lower arm that brings the best rear traction!
The HT rear lower arm, which is machined from lightweight and highly rigid DURACON (POM) material, achieves a highly precise finish and dramatically smooth suspension movement.

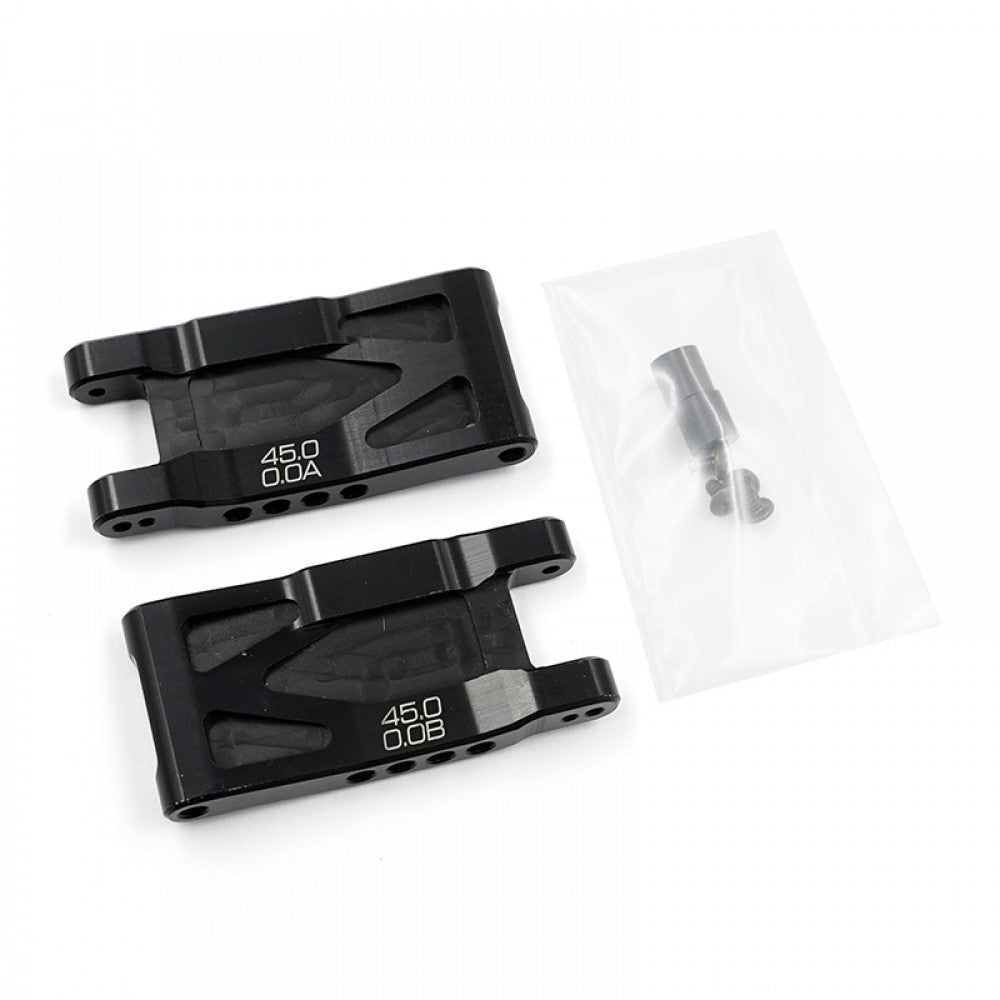

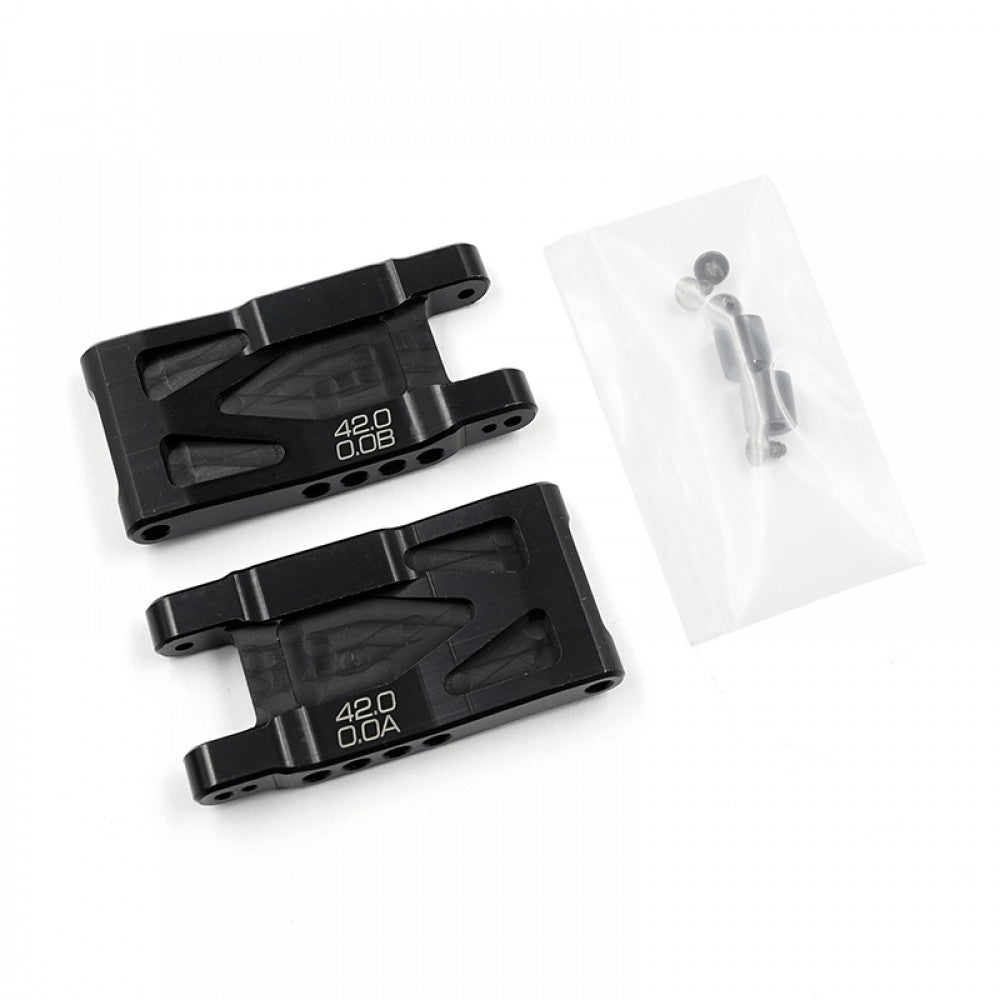

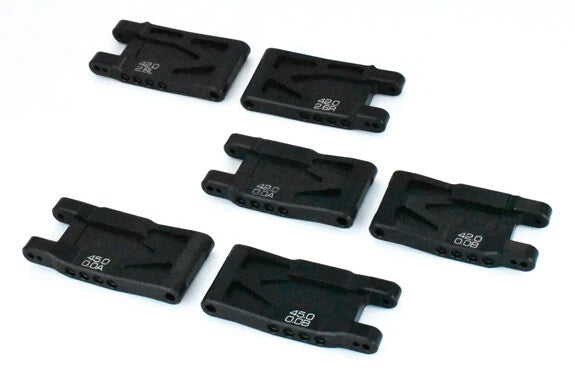

There are two lengths, 42mm and 45mm. In addition to the caster angle of 0 degrees, the 42mm has a caster angle of 2.6 degrees with an inclination on the outer pin side.
As a unique feature, the 42mm and 45mm arms with a caster angle of 0 degrees adopt a reversible structure, and two types of damper mounting heights can be selected by exchanging the left and right.

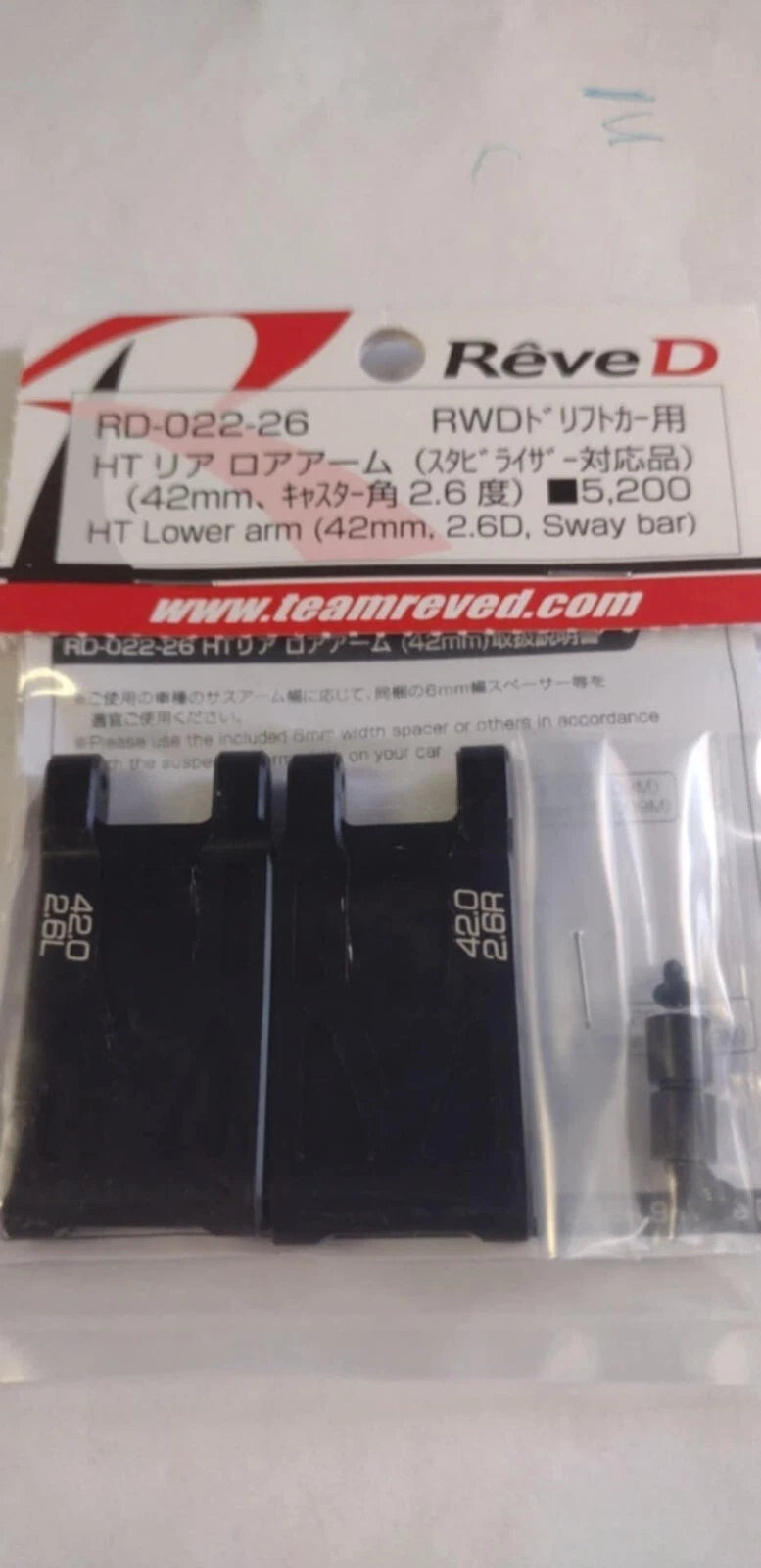

The 42mm caster 2.6 degrees type can increase traction without hindering the sinking of the suspension by tilting the knuckle forward without adding a skid angle.
We especially recommend using it in combination with the long type suspension mounts (#8/#9, type TK#8/#9) that are on sale at the same time. Please try the HT rear lower arm that achieves the best traction performance!

<Accessible chassis>
◆RDX etc. Inner suspension pin can be used for Φ3mm and outer suspension pin is Φ2mm.

<Accessories for HT rear lower arms>
◆M2 tapping screw x 4 pieces (for fixing outer suspension pins)
◆POM 6mm thick spacer x 2 pieces
Please use the included 6mm width spacer or others in accordance with the suspension arm width on your car

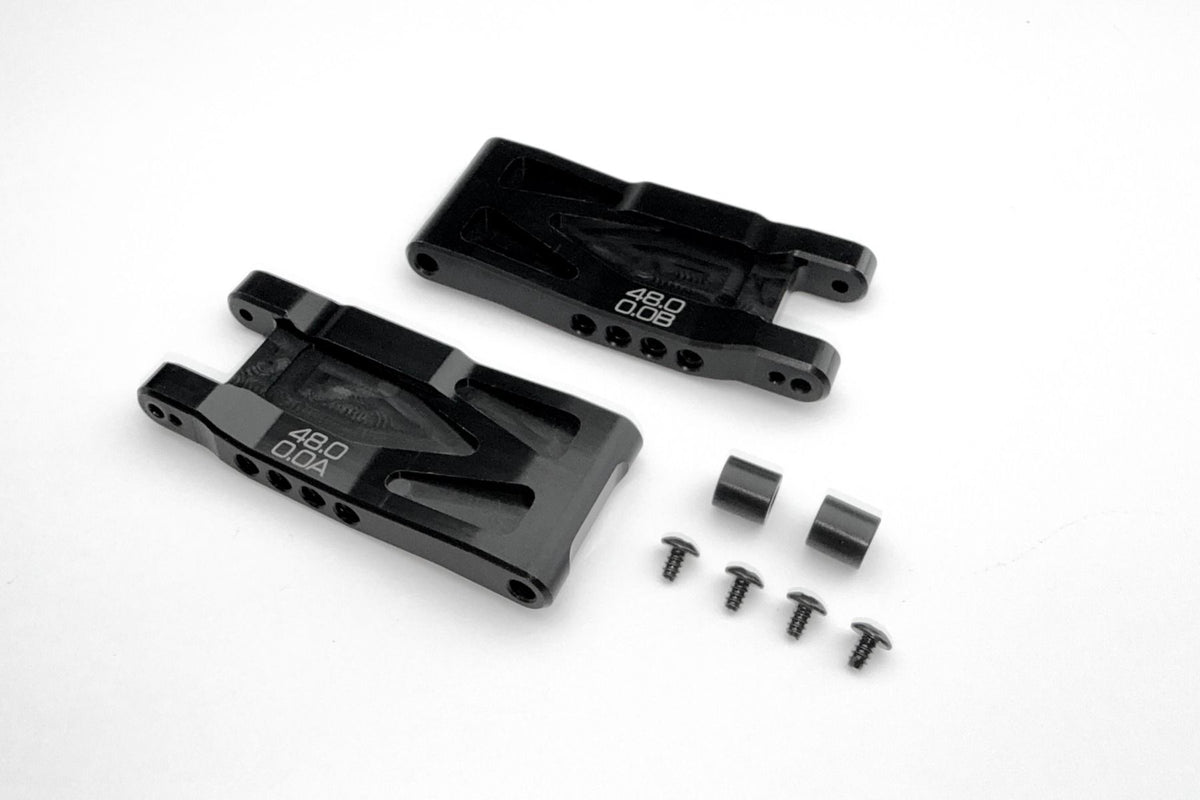

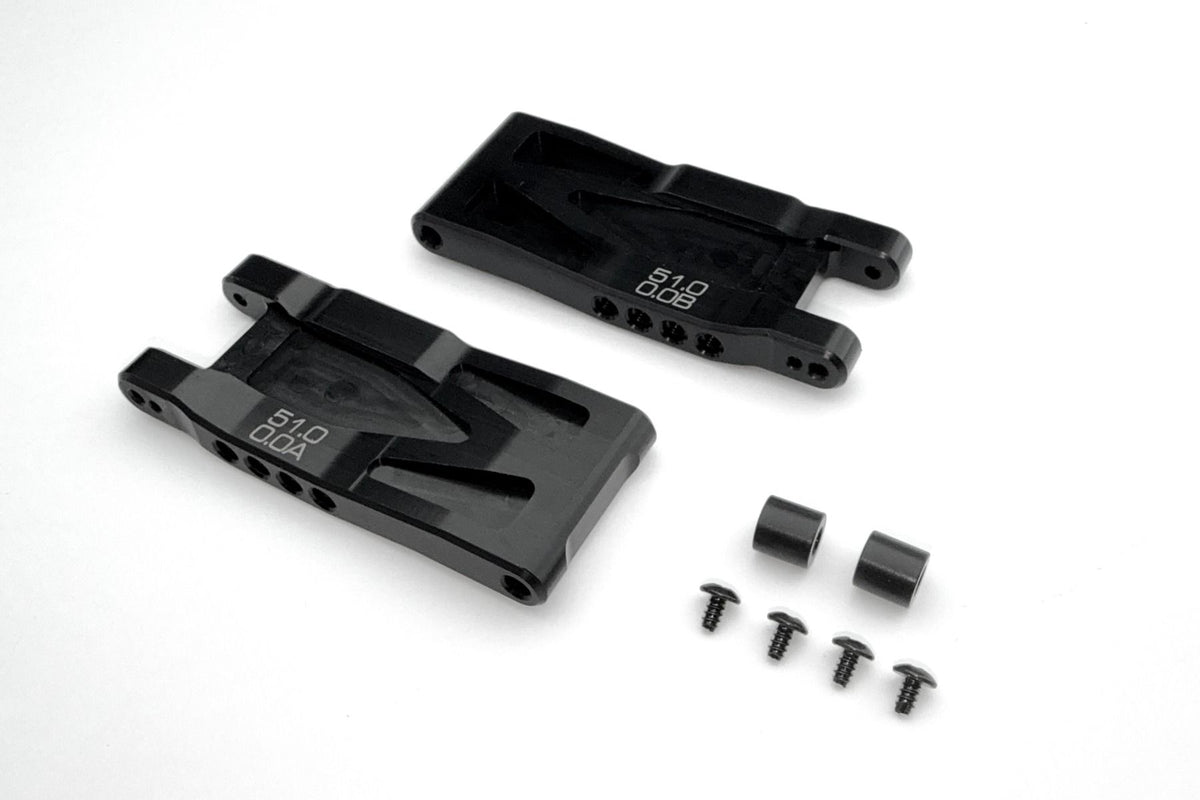

Reve D HT Rear Lower Suspension arm (51mm, 0D)(RD-024-0) We are pleased to announce the reintroduction of the HT (High Traction) Rear Lower Suspension Arm Series, now available once again in 48mm and 51mm specifications. Manufactured from lightweight, high-rigidity Durcan (POM) material through precision machining, the HT rear lower arms deliver exceptional dimensional accuracy and significantly smoother suspension movement. The long-type arm design reduces alignment variation during chassis roll, enhances lateral grip, and contributes to more stable and consistent driving performance. Furthermore, the reversible construction allows drivers to select between two damper mounting heights Down Position and Straight Position by simply switching the left and right arms. The Down Position effectively promotes chassis roll, resulting in increased lateral grip. The Straight Position improves longitudinal traction, supporting highly competitive driving characteristics. We invite you to experience the outstanding traction performance and stability offered by the newly reintroduced HT Rear Lower Suspension Arms 48mm and 51mm.
