RER43505 Redcat Vertex-10 Slider 1/10 4WD Rock Crawler Kit | The RC Shop at Dr Dans

10th Scale Comp Crawler

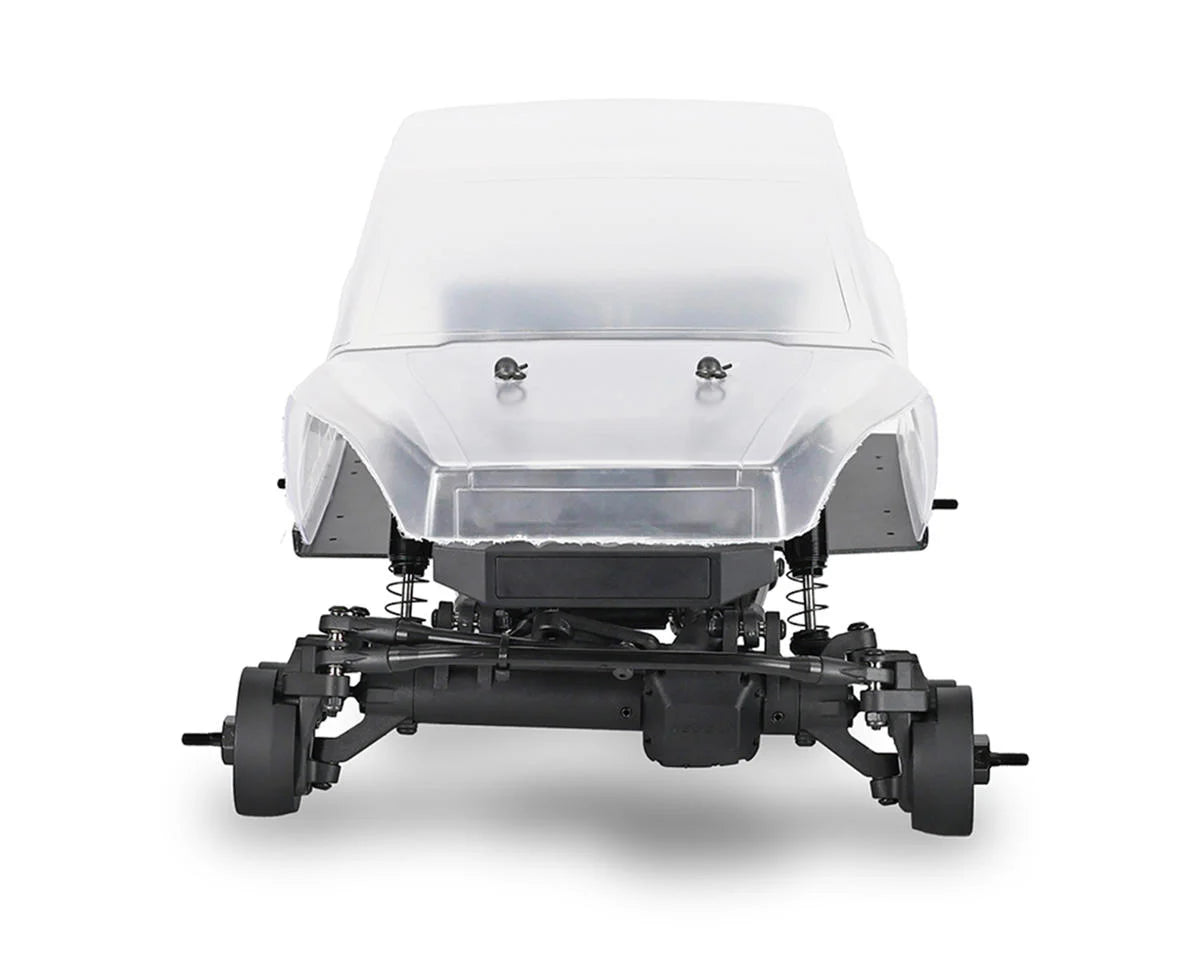

The Redcat Vertex-10 Kit combines durable engineering and advanced suspension design to take comp crawling to the next level. Its reinforced chassis and drivetrain provide the strength needed to tackle extreme terrain, while finely tuned suspension geometry and precise steering inspire confidence on challenging lines. Designed as a customizable platform, the Vertex-10 Kit delivers an excellent balance of durability, capability, and performance for serious rock crawling enthusiasts.

About the Vertex-10

Advanced Suspension and Steering Geometry

The Vertex-10 features an advanced suspension and steering system designed for smooth articulation and precise control. Air emulsion, oil-filled shocks with X-ring seals deliver consistent damping and durability across rugged terrain. Double CV joints provide ultra-smooth articulation, even at extreme steering angles, ensuring maximum maneuverability in tight spots. Together, these features create a suspension system that balances durability, flexibility, and precision for serious crawling performance.

Durability

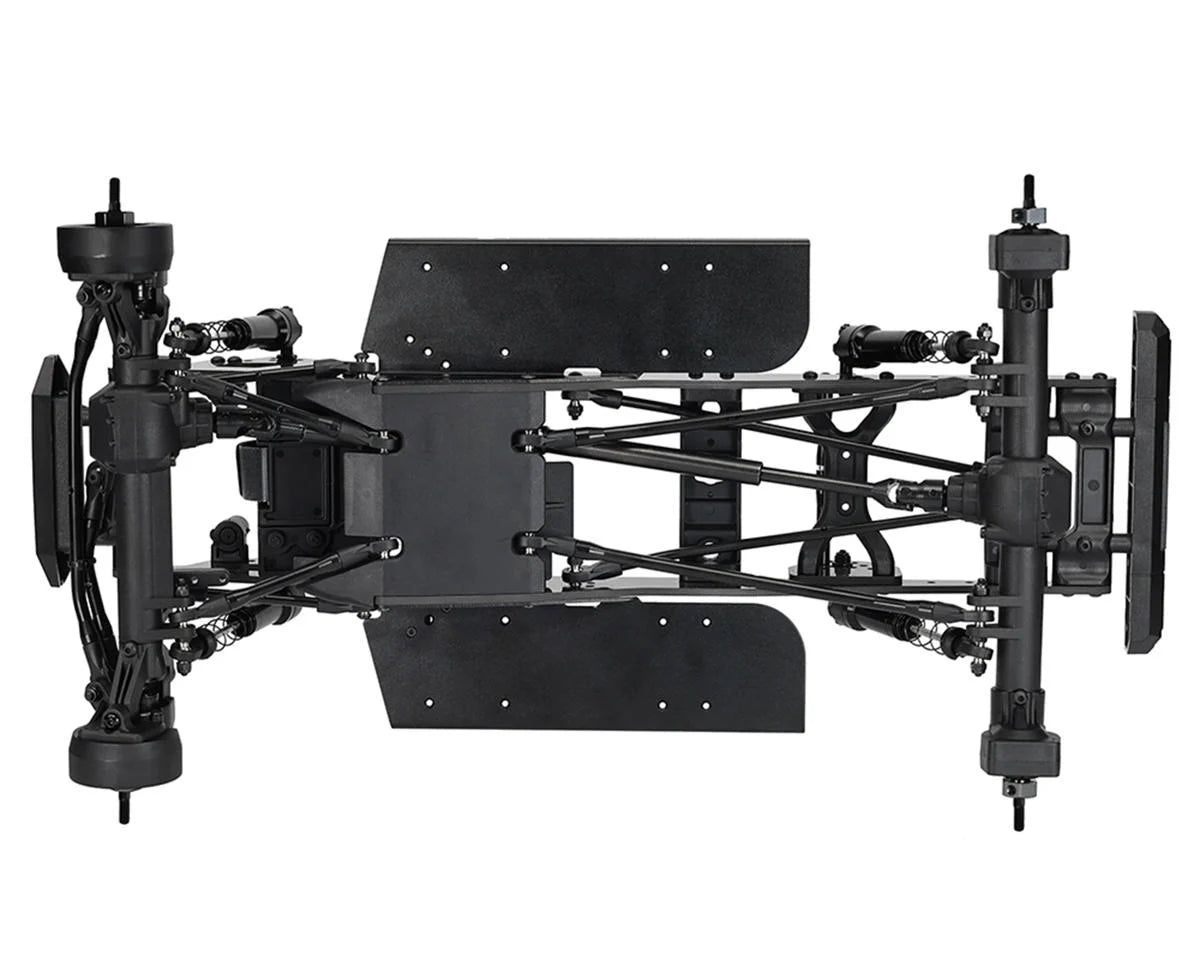

The Vertex-10 is built on a low center of gravity carbon chassis with a forward-mounted motor, delivering stability and strength on demanding terrain. Reinforced solid axles with steel internal tube inserts provide exceptional durability, while hypoid-style ring and pinion gears increase ground clearance and allow the axle housing to slide smoothly over obstacles. Splined metal driveshafts ensure a constant, reliable connection, with angled ends designed to clear rocks and uneven terrain. High-clearance rear links, adjustable suspension geometry, and a tilt body mounting system further enhance toughness and performance. Combined, these features create a crawler that's engineered to withstand extreme conditions while maintaining precision and control.

Features:

• 3mm Carbon Fiber Frame rails
• 10 degree skid plate angle
• High clearance links
• Multiple battery mounting locations
• Clipless body mounting
• Heavy duty axles with steel tube inserts
• Weighted front portal box
• 58 Degrees of steering angle
