SEHREEFS147 Reefs RC RAW800LP Digital Waterproof Brushless Servo (Silver) (High Voltage) | The Rc Shop at DrDans

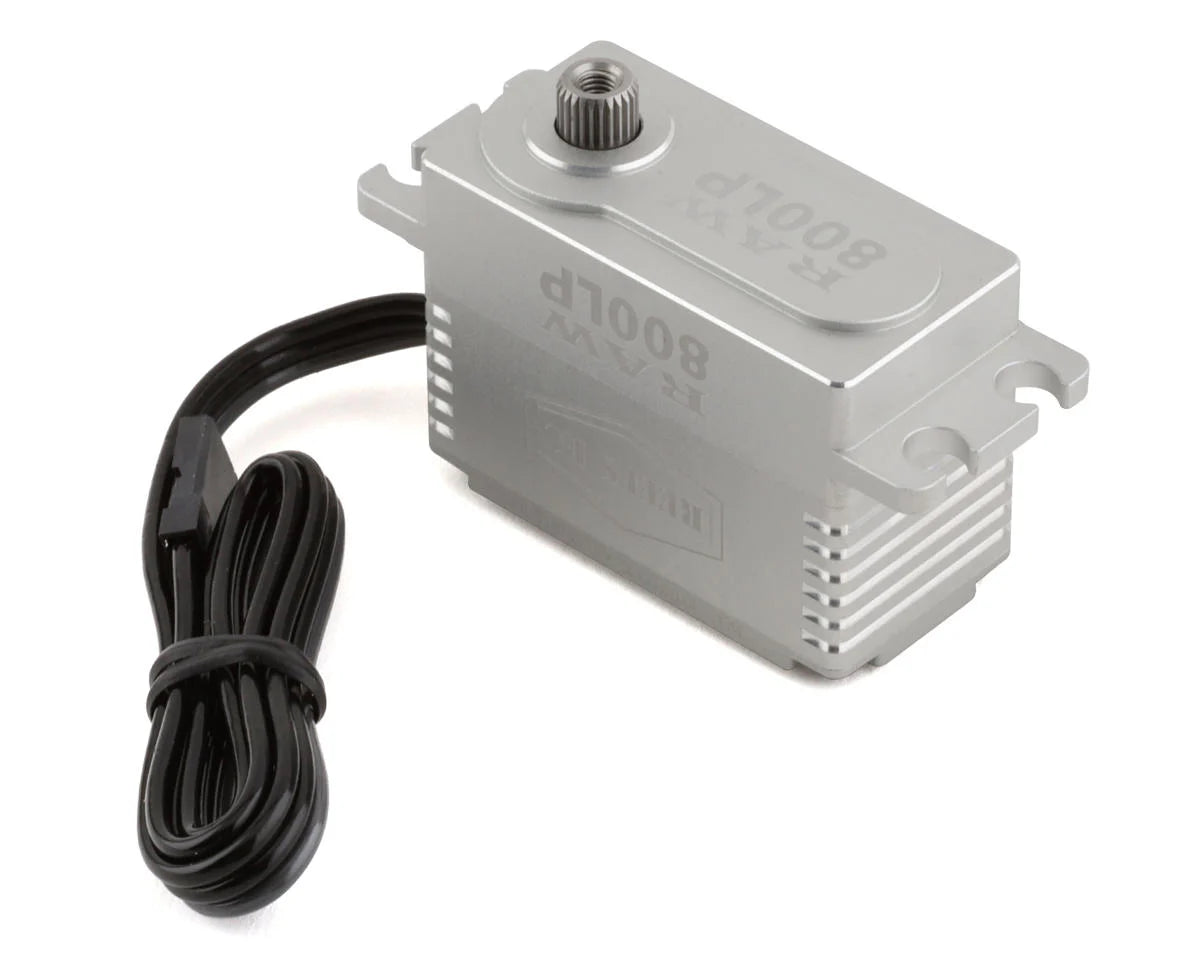

This is the Reefs RC Raw 800LP High Torque Waterproof Digital Servo. Intended for high torque applications where a reliable waterproof servo is needed the Raw 800LP excels. Using a 7-point seal system gives this servo exceptional waterproofing, while a magnetic angle sensor provides precise servo movements you can count on after countless cycles. The gearset consists of strong steel gears captured with an all aluminum servo casing providing excellent heat dissipation and improving consistency. Overall the Raw 800LP delivers where other servos cannot and is an excellent option for most high torque builds.

Features:
Waterproof Design (7 Point Seals)
Magnetic Angle Sensor
CNC Aluminum Case
Programmable with the Reefs Link (SEHREEFS64 - Sold Separately)
Steel internal gears

Specifications:
Internal: Steel Gears /CNC Aluminum Casing
Bearing Type: 2BB
Weight: 2.30oz

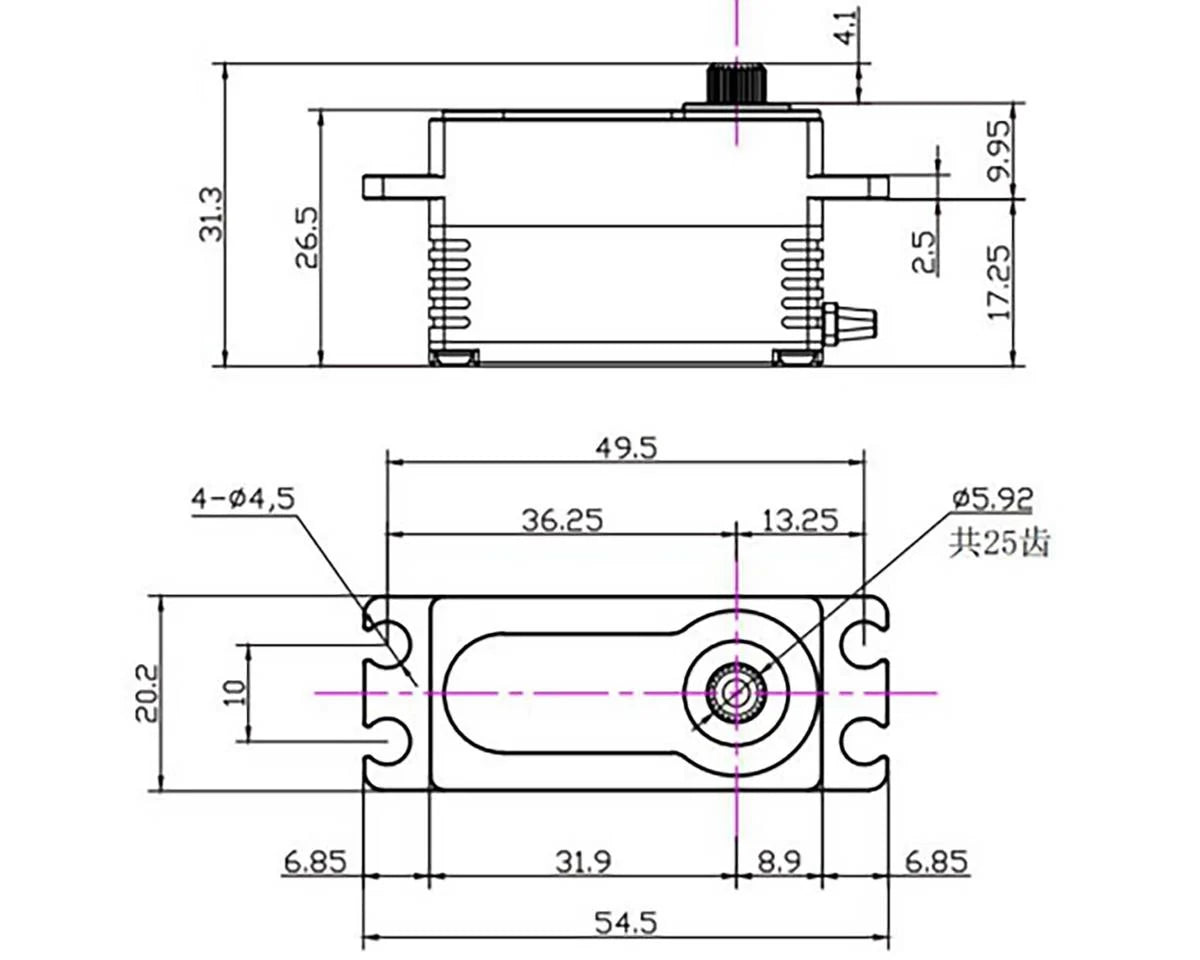

Dimension: 1.6 x .79 x 1.16 (40.8x20.2x29.5mm) (LWH)
Torque:
6.0V: 635oz
7.4V: 715oz
8.4V: 800oz
Speed:
6.0V: .12sec
7.4V: .10sec
8.4V: .09sec
Spline: 25T
Dead Band Width: 2¦Ìs
BEC: Not Required, Recommended
