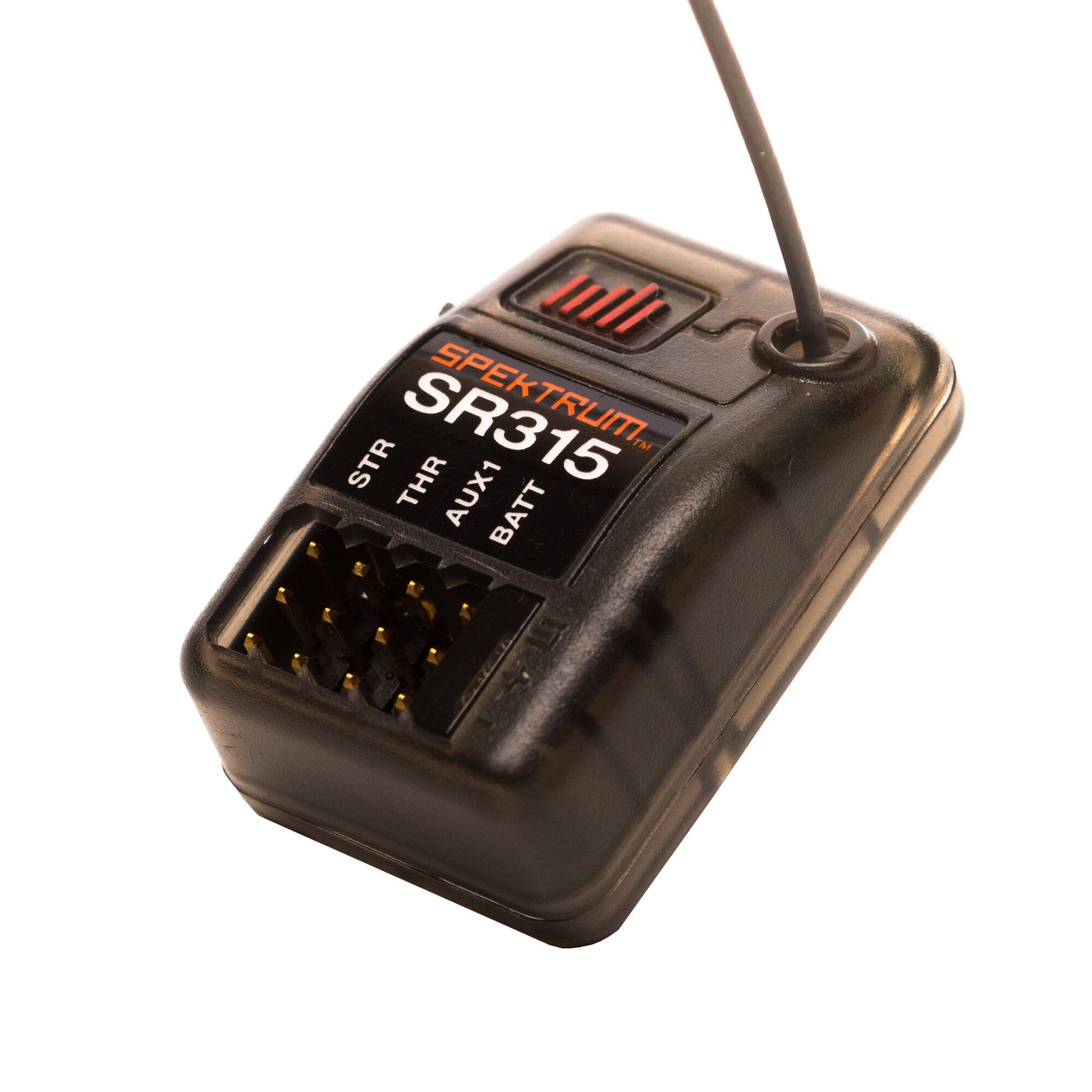

SPMSR315 SR315 DSMR 3 CH Receiver

SR315 DSMR 3 CH Receiver

Key Features
Streamlined design in a compact and lightweight hard-case
Bind-button eliminates the need for a bind plug
SmartSafe™ Failsafe and Preset "Gas Mode" Failsafe options
Outstanding range and 5.5ms capable DSMR technology
Ideal for nearly any surface RC model
Dual Protocol – SR315 Supports Spektrum DSMR/DSM2 2.4Ghz Protocol and SLT FHSS 2.4Ghz Protocol
Overview
Built around frequency-agile DSMR technology, the SR315 receiver delivers superb range and response, especially in noisy RF environments where a solid 2.4GHz link is crucial. Not only is the 2.4ghz link solid, this model also implements our lightning fast 5.5ms frame rate, providing a quicker , low-latency connection for the pro-level enthusiast.

The SR315 also features a new, modern case design that is small, streamlined, and ready for nearly any RC application. The case also features added antenna support and an integrated antenna tube slot for seamlessly easy installation.

No more bind plugs! Instead, an easy-to-use bind button is used to enter the bind mode. Plus, while binding, you have the choice of SmartSafe™ as well as preset ‘Gas’ failsafe options. All combined, Spektrum gives drivers more features in an affordable receiver, so you can drive with confidence.

Antenna Length
9" (229 mm)
Application
Surface
Band
2.4GHz
Bind Method
Bind Button
Channels
3
Data Port
No
Failsafe
Yes
Forward Programming
No
Input Voltage
3.5-9.6 V
Integrated Variometer
No
Modulation
DSMR
Part Type
Electronics
Product Application
Surface
Product Height
0.53 in (13.6 mm)
Product Length
1.28 in (32.7 mm)
Product Weight
0.21 oz (6.0 g)
Product Width
0.84 in (21.4 mm)
Programmable
No
Range
Full
Remote Receiver Ports
0
Serial Out
None
Technology
Standard
Telemetry
No
Telemetry Range
Drive By
Water-Resistant
No
