SPEKTRUM

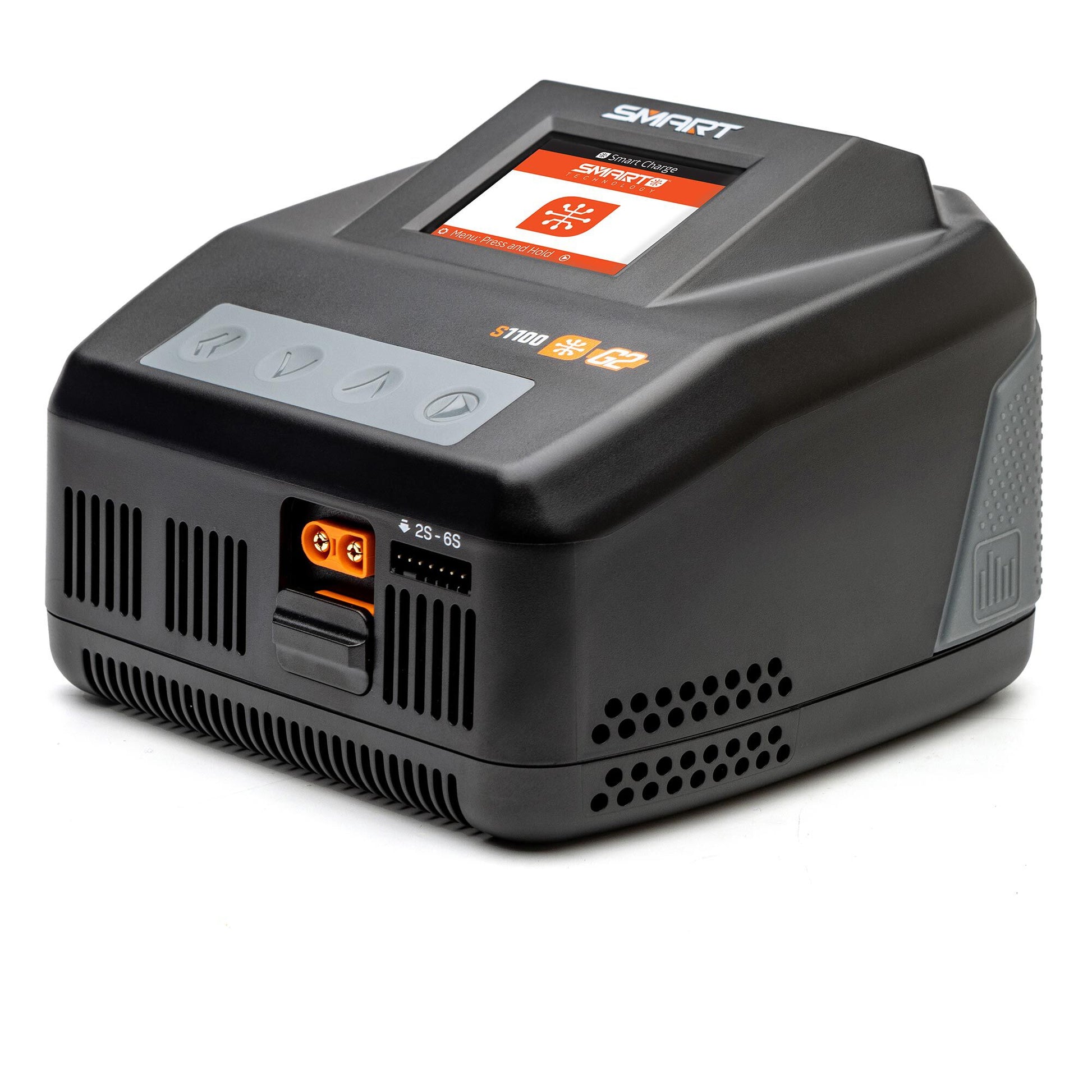

SPMXC2080 Smart S1100 AC Charger, 1x100W
SPMXC2080 Smart S1100 AC Charger, 1x100W
Couldn't load pickup availability
SPMXC2080
Smart S1100 AC Charger, 1x100W
Amp Meter
Yes
Application
RC model battery charger
Battery Balance Connector
JST-XH
Battery Temperature Monitoring
Yes
Battery Type
Smart, Non Smart, LiFe (3.3V per cell), LiHV (3.8V per cell), LiIon (3.3V per cell), LiPo (3.7V per cell), NiCd (1.2V per cell), Pb (2.0V per cell), NiMH (1.2V per cell)
Charge Protection Circuitry
Yes
Discharge
0.1 - 1.5A, adjustable in 0.1A increments (15W Max)
Display
2.4" 320 x 240 IPS LCD
Hard Case
Yes
Input Voltage
100 - 240V AC, 50 - 60 Hz
Integrated Balancing
Yes - Internal Balancer & Internal Adapter
LiPo Compatibility
6S, 1S, 2S, 3S, 4S, 5S
Maximum Charge Rate
10 to 14 Amps
Maximum Continuous Discharge Current
1.5A (15W Max)
Normal/Standard Charge Rate
0.1 - 10.0A, adjustable in 0.1A increments (100W Max)
Number of Cells
1 - 6S Li-Ion/LiPo/LiFe, 1 - 16S NiCd/NiMH, 1 - 12S Pb
Number of Output Ports
1
Output Connector
IC3, IC5
Over Current Protection
Yes
Part Type
Electronics
PC Connectivity
Yes
Peak Detection
Yes
Power (watts)
100 - 199W
Power Source
AC
Product Height
4.1" (104 mm)
Product Length
5.7" (145 mm)
Product Weight
1.75 lb (795g)
Product Width
5.7" (145 mm)
Programmable
Yes
Reverse Polarity Protection
Yes
Safety Timer
Yes
Selectable Charge Rate
Yes
Short Circuit Protection
Yes
Software Updates
Yes
Technology
Smart
Thermal Protection
Yes
USB Power out
Yes
Voltage Meter
Yes
