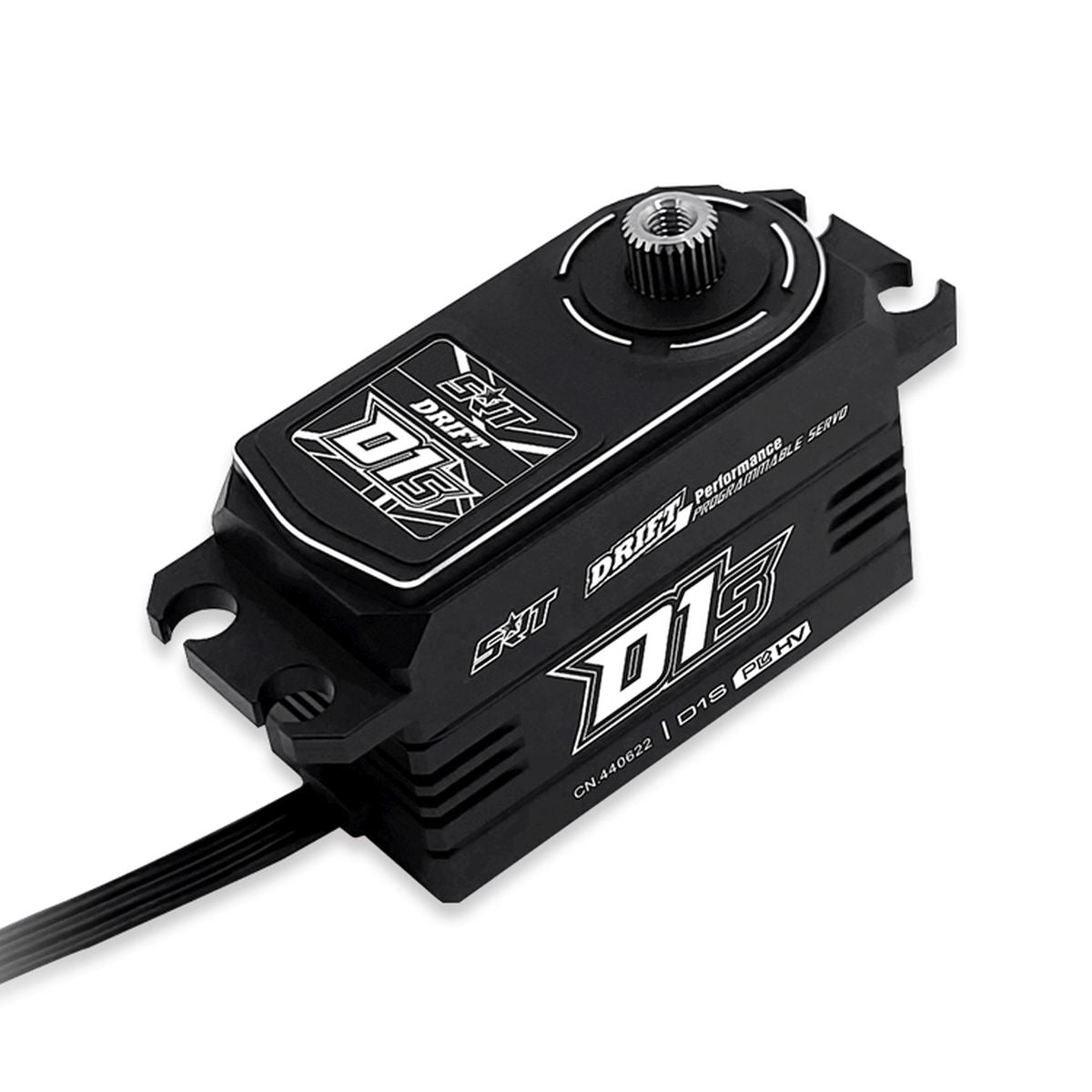

Low Profile HV Coreless Digital Servo, .18sec / 256.9sec @ 8.4V
The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. This is a low profile standard sized servo for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

Features:
Ideal for 1/10 drift car applications
Incredible efficiency and low power consumption
Titanium & Steel gears for precision and durability
Standard dimension make it perfect for vehicles that can benefit from a high quality servo
CNC Machined aluminum case for exceptional cooling
SSR mode compatible
2 usec Dead Band
Superior Holding Torque
1-Year Limited Warranty

Specifications:
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
Control System: Pulse Width Control
Working Frequency: 1520Is / 330hz
Operating Voltage: dc6.0-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.10 sec/60 degrees at no load
Operating Speed (7.4v): 0.095 sec/60 degrees at no load
Operating Speed (8.4v): 0.08 sec/60 degrees at no load
Stall Torque (6.0v): 14.0kg.cm (194.4 oz/in)
Stall Torque (7.4v): 16.5kg.cm (229.1 oz/in)
Stall Torque (8.4v): 18.5kg.cm (256.9 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 41.0x20.0x27.3 mm /1.61x0.79x1.07 in
Weight: 58.0g (2.05 oz)
Connector Wire Length: jr 80 mm
