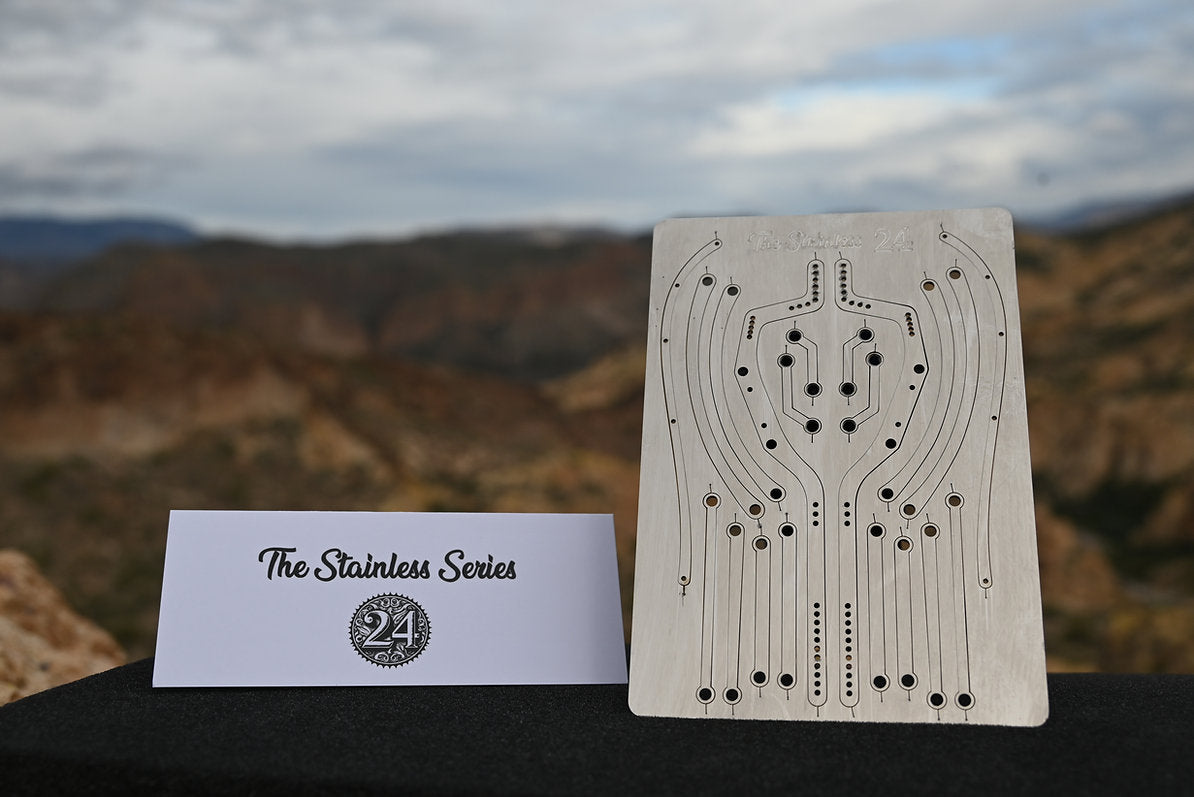

The Stainless 24 is a performance oriented chassis system for the SCX24.

Build what you want, it'll perform either way. The kits come with long and short, front and rear links. You can build 155-172mm wheelbases all from the same kit.

Kit includes: chassis and roof rails, links, pivot balls and orings, all needed screws and nuts, carrier bearings and shaft, and 3d printed kit. Printed parts include the skid, sliders, shock braces/body mounts, roof and carrier housing.

Made from #4 Stainless steel these kits start life as a 4'x8' sheet and are cut with a fiber laser. We under cut the link holes on the laser so that they can be drilled to the perfect bore. To us its worth the extra steps to insure the perfect fit.

Class 1 -

This is the specific Class 1 designed chassis with a flat skid and no carrier bearing for competition.

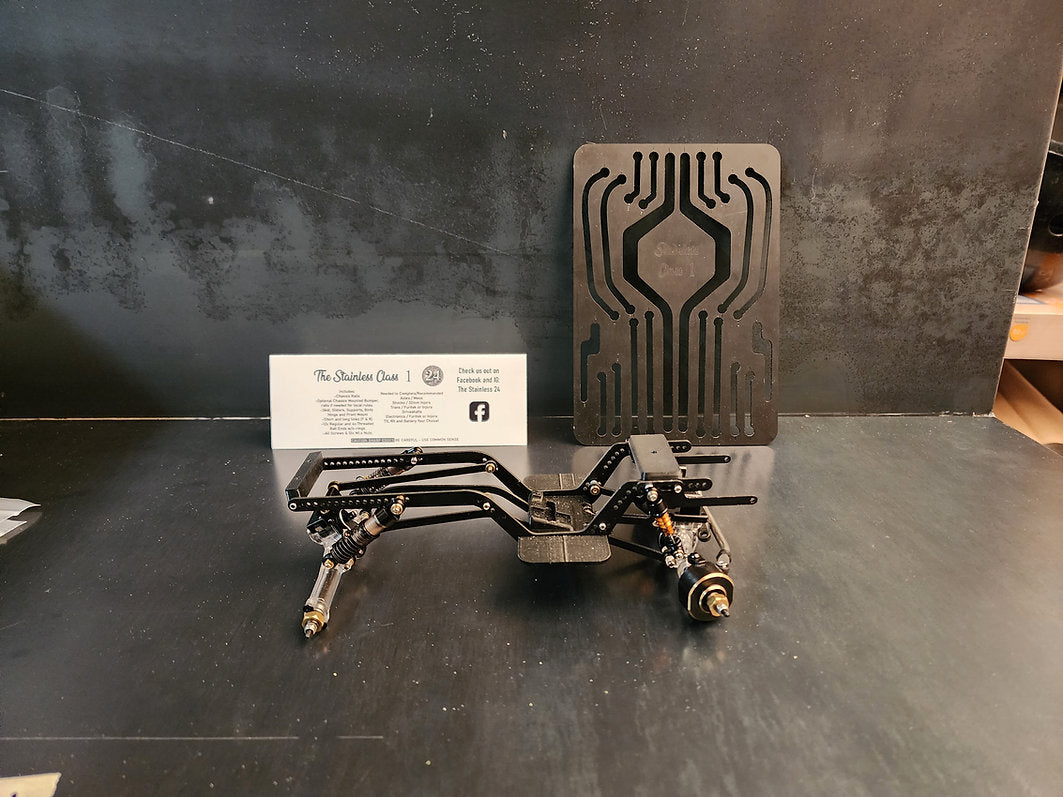

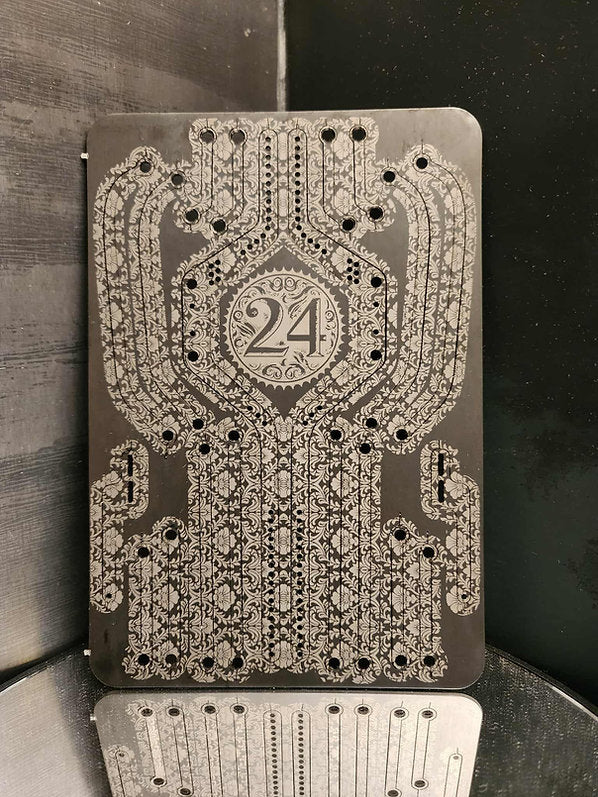

Welcome to the Stainless C1 platform. Black Nitride coating comes standard, all kits are black on black. Learn about black nitride coatings here.  In standard Stainless 24 fashion it comes with short and long front and rear links. We've now unlocked 140-155mm wheelbases with a flat skid. 34mm shocks are recommended.

The Stainless C1 Kit includes: The Plate: chassis rails, all links and a front bumper mount, ballends (12x regular and 4x threaded) all necessary screws and 3d printed kit.

Printed kit includes skid, sliders, shock braces and hinge/body mounts.

Wheelbases:

Short front and short rears will sit you at 140mm.

If you run long front and short rear your at 145mm.

If you run the long rears it adds 10mm and is 150mm.

If you run long rears and long fronts your at 155mm.

Made from #4 Stainless steel these kits start life as a 4'x8' sheet and are cut with a fiber laser. We under cut the link holes on the laser so that they can be drilled to the perfect bore. To us its worth the extra steps to insure the perfect fit.

Hardware locations:

4x 10mm @ Sliders

4x 12mm @ Shocks

8x 10mm @ Lower links, skid and axle side

2x 6mm @ Rear upper links chassis side

2x 10mm @ Front uppers chassis side (use spacers here)

4x 10mm @ Uppers links axle side

4x 6mm@ Chassis supports front and rear

2x nylock nuts for use ar rear shocks.
