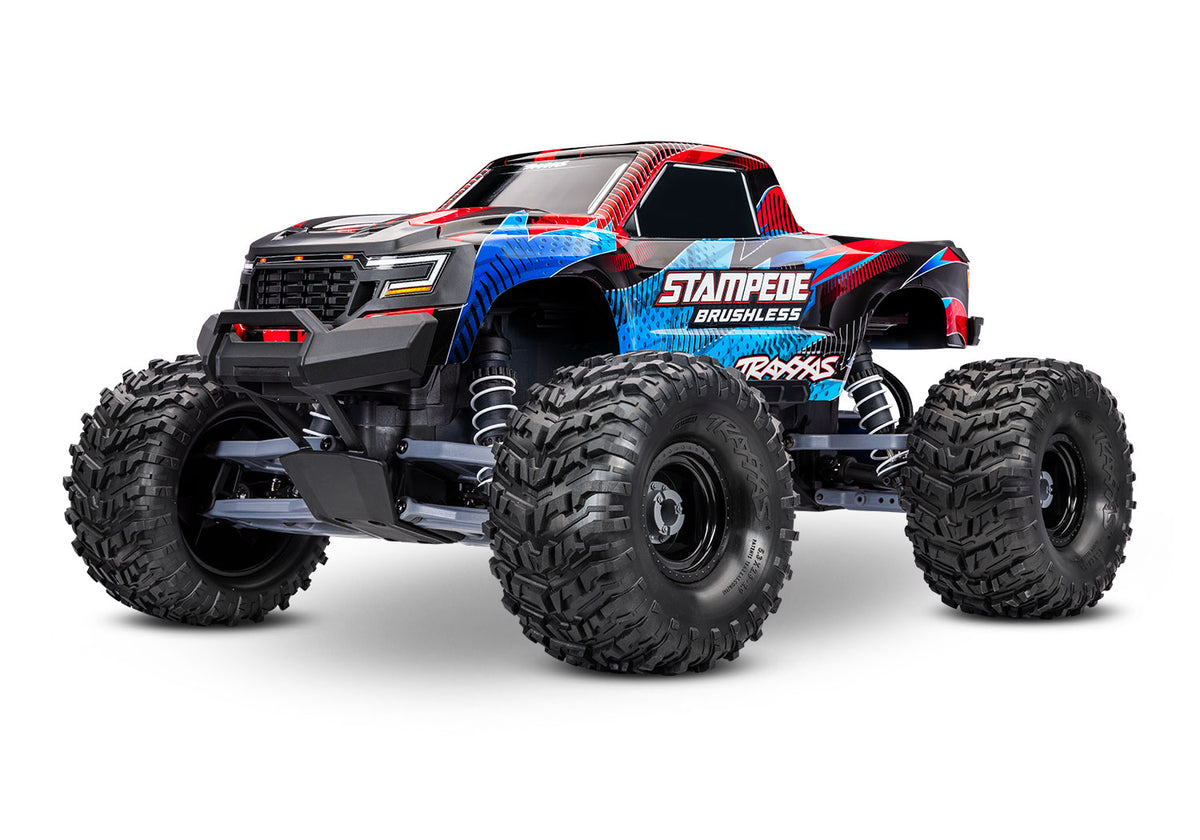

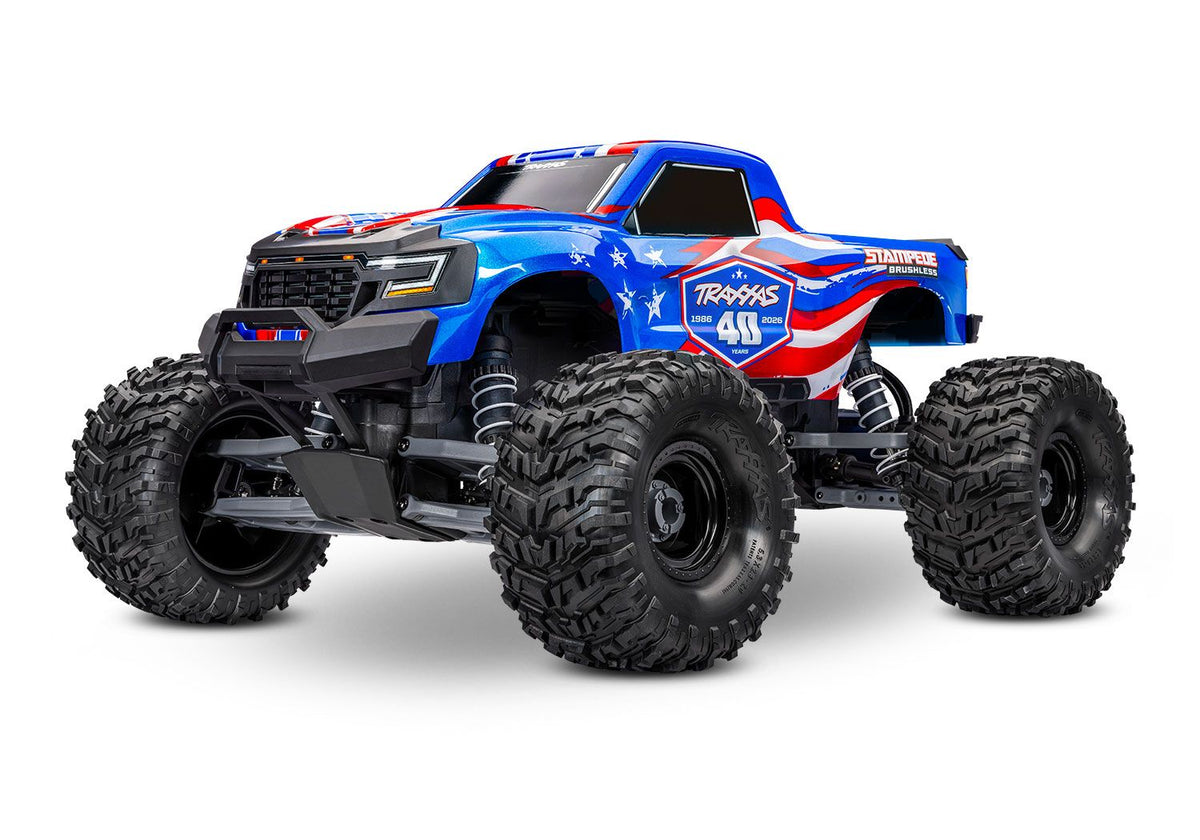

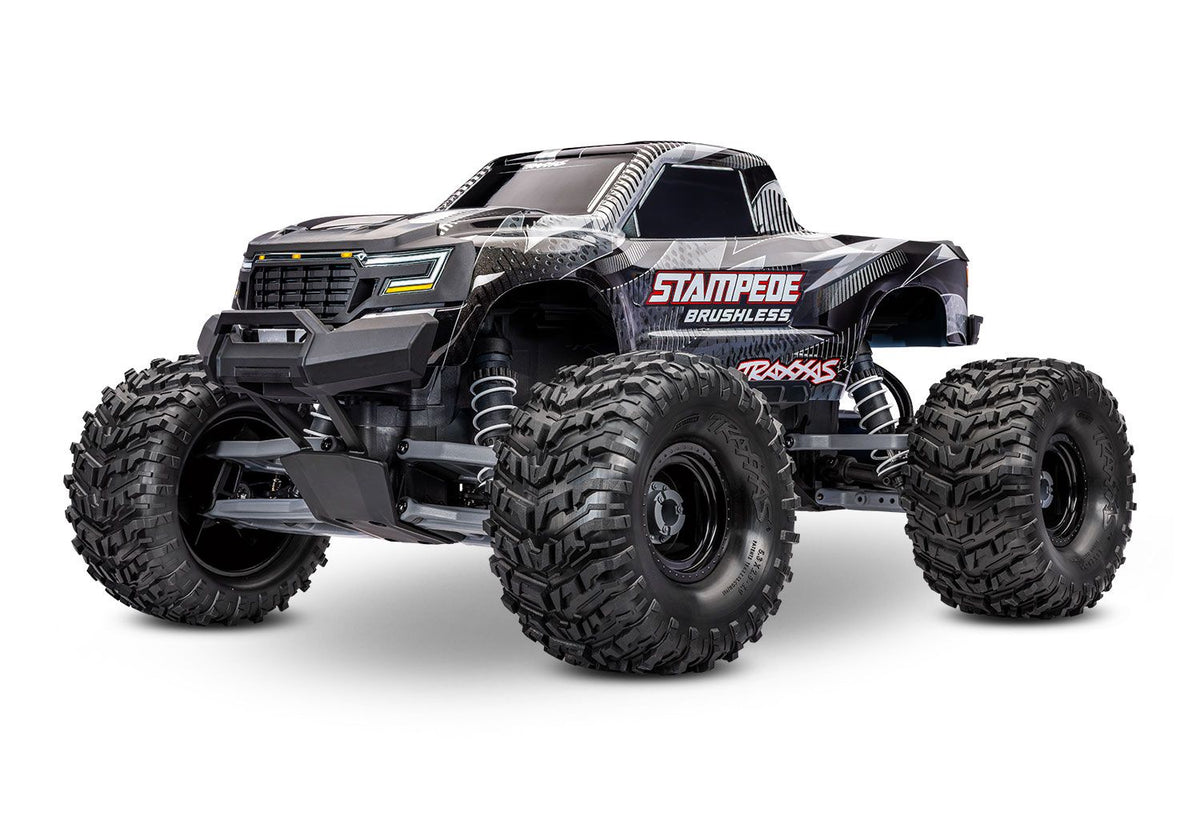

Traxxas Stampede 2WD Brushless 1/10 RTR Monster Truck – 136454-4 Color Variants

MODEL SPECS

Name:	Stampede 2WD Brushless
Type:	Monster Truck
Speed:	35+ mph with 2s LiPo battery, 50+ mph with 3s
Skill Level:	1
Scale:	1/10
Weight:	6.09 pounds (2.76 kg)
Length:	20.28 inches (515 mm)
Width:	13.86 inches (352 mm)
Track:	13.86 inches (352 mm)
Height:	8.34 inches (212 mm)

Wheelbase:	11.65 inches (296 mm)
Ground Clearance:	3.54 inches (90 mm)
Driveline:	Rear Wheel Drive
Transmission:	Magnum 272™
Differential Type:	Planetary steel gear
Gear Ratio (Internal):	9.52:1
Gear Pitch:	32 pitch
Steering Servo:	2057 metal gear waterproof
Radio System:	TQi 2.4 GHz 2-channel radio
Battery Compartment Specs:	166 mm X 47.5 mm X 28 mm

MOTOR SPECS

Name:	Velineon V3200 (patent pending)
Motor Type:	Sensorless brushless
Weight:	7.48 ounces (212 g)
Length:	3.15 inches (80 mm)
Diameter:	1.53 inches (39 mm)
Shaft Size:	5 mm
Connector Type:	3.5 mm Bullet

ESC SPECS

Name:	VX3 Electronic Speed Control
ESC Type:	Brushless
Voltage Range:	2-cell or 3-cell LiPo (NiMH not supported)
Case Size:	2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm)
Weight:	4.20 ounces (119 g)
BEC Voltage:	6.0 volts
Motor Connectors:	3.5 mm Bullet
Battery Connectors:	Traxxas High-Current Connector

Bring serious brushless power to the classic Stampede platform with the Traxxas Stampede 2WD Brushless – 136454-4.

This redesigned 1/10-scale monster truck combines rear-wheel-drive handling with the powerful Traxxas VX3 brushless ESC and Velineon V3200 3200Kv motor, delivering speeds of approximately 35+ MPH on 2S LiPo and 50+ MPH on 3S LiPo with the stock gearing.

The Stampede 2WD Brushless features a durable monocoque chassis, Magnum 272 metal-gear transmission, Extreme HD suspension components, composite GTR shocks, 32-pitch gearing, Talon MXT tires, and a clipless painted body.

It arrives fully assembled and Ready-To-Race with a TQi 2.4GHz radio system with TSM.

Key Features

• 1/10-scale 2WD brushless monster truck

• Rear-wheel-drive drivetrain

• Traxxas VX3 brushless ESC

• Velineon V3200 3200Kv brushless motor

• 35+ MPH on 2S LiPo

• 50+ MPH on 3S LiPo

• TQi 2.4GHz 2-channel radio system

• Traxxas Stability Management (TSM)

• Magnum 272 metal-gear transmission

• Torque-Control slipper clutch

• Planetary gear differential with steel ring gear

• 32-pitch spur and pinion gearing

• 5mm motor shaft

• Composite GTR oil-filled shocks

• Extreme HD suspension arms and driveshafts

• Clipless painted body

• Bash-Lock body protection system

• 2.8" monster truck wheels

• Talon MXT tires

• Waterproof electronics

• Fully assembled Ready-To-Race

What's Included

• (1) Traxxas Stampede 2WD Brushless Monster Truck

• (1) VX3 Brushless ESC

• (1) Velineon V3200 Brushless Motor

• (1) TQi 2.4GHz 2-Channel Transmitter

• Maintenance Tools

• Factory Painted Clipless Body

Required to Run

You will need:

• (1) 2S or 3S LiPo battery with Traxxas High-Current connector

• Compatible LiPo charger

• (4) AA batteries for transmitter

Battery Note

The VX3 power system is designed for 2S or 3S LiPo batteries.

NiMH batteries are not supported.

Specifications

Brand: Traxxas
Model: Stampede 2WD Brushless
Scale: 1:10
Vehicle Type: Monster Truck
Completion Level: Ready-To-Race
Drivetrain: Rear-Wheel Drive / 2WD
Motor: Velineon V3200 3200Kv
Motor Type: Sensorless Brushless
ESC: Traxxas VX3
Battery Compatibility: 2S / 3S LiPo
Battery Connector: Traxxas High-Current
Radio System: TQi 2.4GHz 2-Channel
TSM: Yes
Steering Servo: 2057 Metal Gear Waterproof
Transmission: Magnum 272
Differential: Planetary Steel Gear
Gear Pitch: 32 Pitch
Internal Gear Ratio: 9.52:1
Motor Shaft: 5mm
Top Speed: 35+ MPH 2S / 50+ MPH 3S
Length: 20.28 in / 515mm
Width: 13.86 in / 352mm
Height: 8.34 in / 212mm
Wheelbase: 11.65 in / 296mm
Ground Clearance: 3.54 in / 90mm
Weight: 6.09 lb / 2.76kg
Battery Compartment: 166 x 47.5 x 28mm
Battery Included: No
Charger Included: No2WD
