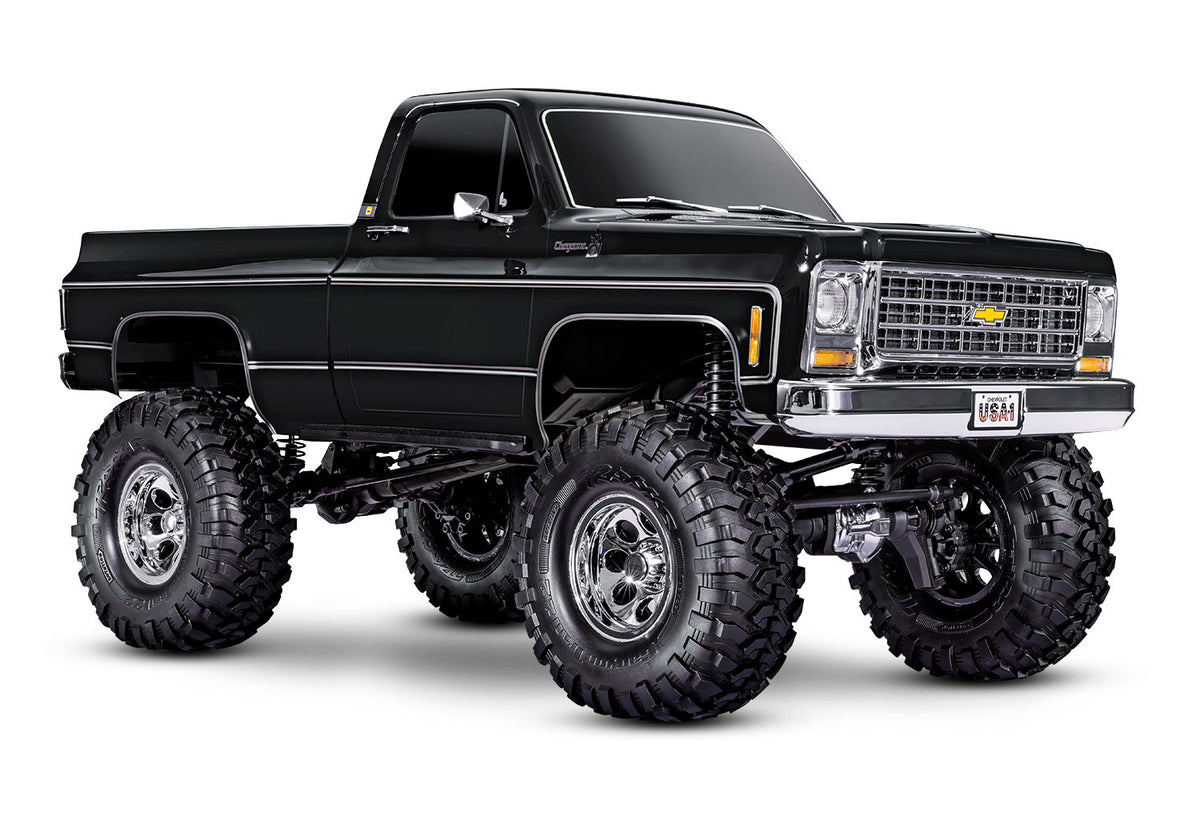

Traxxas TRX-4 Chevrolet K10 High Trail Edition 1/10 Scale 4WD RC Crawler – 92056-4

Officially Licensed 1979 Chevy K10 | Factory Lift Kit | Portal Axles | Remote Locking Differentials

Take your RC crawling adventures to new heights with the Traxxas TRX-4 Chevrolet K10 High Trail Edition, a premium 1/10 scale 4WD trail truck combining classic American pickup styling with legendary TRX-4 off-road capability.

Featuring an officially licensed 1979 Chevrolet K10 Cheyenne pickup body, the High Trail Edition captures the unmistakable look of the classic Chevy square-body truck with a detailed grille, chrome bumpers, side mirrors, scale accessories, and an authentic lifted stance.

A factory-installed Long Arm Lift Kit raises the truck more than an inch above the standard TRX-4 configuration, while oversized 2.2-inch Canyon Trail tires provide exceptional traction and increased ground clearance.

Equipped with Traxxas portal axles, remote-locking differentials, and a two-speed transmission, the K10 High Trail Edition is built to tackle rocky terrain, muddy trails, steep climbs, and challenging obstacles.

Key Features

• Officially Licensed 1979 Chevrolet K10 Body: Authentic square-body pickup styling with realistic scale details.

• Factory-Installed Long Arm Lift Kit: Raises the truck more than one inch for increased ground clearance and an aggressive lifted appearance.

• TRX-4 Portal Axles: Increase ground clearance beneath the axles and help reduce torque twist.

• Remote Locking Differentials: Independently lock or unlock the front and rear differentials directly from the transmitter.

• Two-Speed High/Low Transmission: Switch between low-range crawling control and higher-speed trail driving.

• Oversized 2.2-Inch Canyon Trail Tires: S1 compound tires provide traction across rocks, dirt, mud, and rough terrain.

• Extended 336mm Wheelbase: Longer chassis enhances stability and captures the appearance of a full-size pickup.

• Titan 550 21-Turn Motor: High-torque brushed motor designed for trail driving and technical crawling.

• Waterproof XL-5 HV ESC: Supports compatible 2S and 3S LiPo power and five selectable driving profiles.

• Extended Aluminum GTS Shocks: Smooth oil-filled suspension performance and increased articulation.

• 2075X Metal-Gear Steering Servo: High-torque waterproof digital steering servo.

• TQi 2.4GHz 4-Channel Radio: Full control over steering, throttle, transmission shifting, and differential locking.

• Clipless Body Mounting: Secure, hidden body attachment without traditional exposed clips.

• LED-Ready Body: Headlight and taillight housings designed for compatible optional lighting.

• Factory-Assembled RTR: Ready for installation of a compatible battery and final setup.

Available Colors

• Red

• Copper

• Black

• Blue

• Silver (where available)

Select your preferred color before adding to your cart.

Product Specifications

• Manufacturer: Traxxas

• Model Number: 92056-4

• Model: TRX-4 Chevrolet K10 High Trail Edition

• Scale: 1/10

• Vehicle Type: Scale Trail Truck / Rock Crawler

• Body: 1979 Chevrolet K10 Pickup

• Drivetrain: Shaft-Driven 4WD

• Motor: Titan 550 21T Brushed

• ESC: Waterproof XL-5 HV

• Transmission: Remote-Shift Two-Speed High/Low

• Differentials: Remote Locking Front and Rear

• Axles: Portal Axles

• Steering Servo: Traxxas 2075X Metal Gear

• Radio: TQi 2.4GHz 4-Channel

• Wheelbase: 336mm / 13.20 inches

• Length: 526mm / 22.20 inches

• Width: 270mm / 10.60 inches

• Height: 277mm / 10.89 inches

• Center Ground Clearance: 102mm / 4 inches

• Weight: Approximately 7.38 lbs / 3.35kg

• Tires: 2.2-Inch Canyon Trail S1 Compound

• Battery Compatibility: 2S–3S LiPo or compatible 6–7-cell NiMH

• Assembly: Factory Assembled Ready-to-Drive

Ultimate Scale Crawling Performance

The TRX-4 K10 High Trail Edition delivers an outstanding combination of scale realism and off-road capability.

Portal Axle Performance: Increased ground clearance helps the truck navigate larger obstacles without getting hung up on axle housings.

Remote Locking Differentials: Keep the differentials unlocked for tighter turning on easy trails, or lock them when additional traction is needed.

Two-Speed Transmission: Select low gear for technical crawling and high gear for faster trail exploration.

High Trail Suspension: The factory lift kit and extended shocks increase ride height and wheel articulation for challenging terrain.

Whether you're building a scale trail collection or exploring your favorite crawling course, the Chevy K10 High Trail Edition is ready for adventure.

Recommended Batteries & Chargers

The Traxxas TRX-4 K10 High Trail Edition supports compatible 2S and 3S LiPo batteries.

Recommended power packages include:

• Traxxas 2970-3S: 5000mAh 3S LiPo Battery & EZ-Peak Plus Charger Combo

• Traxxas 2992: 5800mAh 2S LiPo Battery & EZ-Peak Plus Charger Combo

Package Includes

• (1) Traxxas TRX-4 Chevrolet K10 High Trail Edition RC Truck

• (1) Traxxas TQi 2.4GHz Transmitter

• Factory-Installed Titan 550 Motor and XL-5 HV ESC

• Factory-Painted 1979 Chevy K10 Body

• Factory-Installed Electronics, Suspension, Wheels, and Tires

• Included Manufacturer Accessories and Documentation

Required to Complete

• (1) Compatible RC Battery

• (1) Compatible Battery Charger

• (4) AA Batteries for Transmitter

Battery and charger are sold separately.

Why Choose the Traxxas K10 High Trail?

The Traxxas TRX-4 Chevrolet K10 High Trail Edition combines the unmistakable appearance of a lifted classic Chevy pickup with serious trail performance.

From muddy adventures to challenging rock crawling, this premium scale truck delivers the traction, ground clearance, and driving versatility needed for outdoor RC exploration.

Classic Chevy Style. Legendary TRX-4 Capability. High Trail Adventure.
